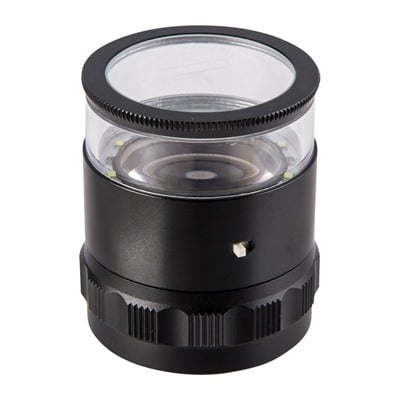

IGAGING 10X MAGNIFIER WITH SCALE

The iGaging 10X Magnifier with Scale is a precision optical inspection tool designed for detailed measurement, layout verification, and close-up examination of firearm components, machined parts, tools, and other precision workpieces. Featuring a distortion-free 10X optical lens, integrated measuring reticle, and bright LED illumination, this magnifier provides the clarity needed for accurate inspection and measurement tasks.

Engineered for gunsmiths, machinists, reloaders, engravers, and quality control professionals, the magnifier incorporates a precision laser-etched glass reticle capable of measuring length, diameter, radii, angles, pitch, and thickness. The illuminated viewing area ensures excellent visibility in workshops, machine shops, and other low-light environments, while the adjustable focus allows users to achieve sharp, detailed images for critical inspection work.

FEATURES

• 10X Optical Magnification
• Distortion-Free Optical Lens
• Integrated Precision Measuring Reticle
• Bright LED Illumination System
• Adjustable Focus Design
• Precision Laser-Etched Glass Scale
• Suitable for Measuring Length, Diameter, Radius, Angles, Pitch, and Thickness
• Ideal for Gunsmithing, Machining, Inspection, and Layout Work
• Portable and Compact Design
• Protective Storage Case Included

SPECIFICATIONS

• Brand: iGaging
• Product Name: 10X Magnifier with Scale
• Model Number: 36-LED10
• Magnification: 10X
• Lens Diameter: 1"
• Viewing Area: 1-1/4"
• Reticle: #2 Measuring Reticle
• Reticle Diameter: 1-3/8" (34mm)
• Scale Resolution: 0.005"
• Reticle Precision: 0.0005" / 0.01mm
• Maximum Measuring Range: 0.04" / 1.2mm
• Length: 2-1/2"
• Overall Size: 2" H x 1-3/4"
• Lighting: 8 LED Lights
• Battery: AG9
• Weight: 0.56 lbs

INCLUDED

• 10X LED Optical Loupe
• #2 Measuring Reticle
• AG9 Battery
• Protective Leather Case

The iGaging 10X Magnifier with Scale is a versatile precision inspection tool that combines powerful magnification, bright LED illumination, and integrated measurement capability in a compact package. Whether you're inspecting firearm components, verifying machining work, or performing precision measurements, this optical magnifier delivers the clarity and accuracy needed for professional results.
