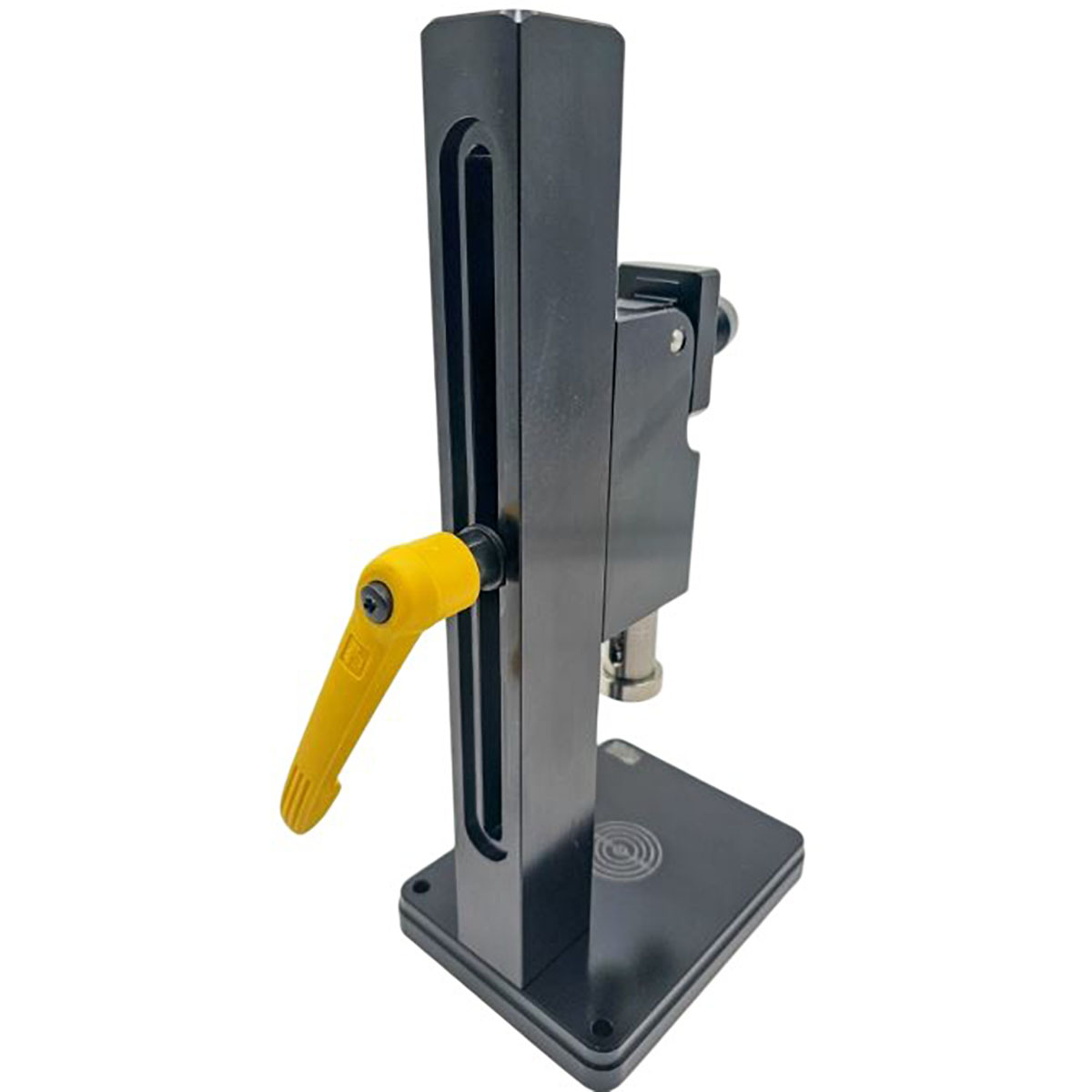

L.E. Wilson Precision Arbor Press

The new L.E. Wilson Precision Arbor Press is the result of decades of designing, engineering, and manufacturing precision tools for the discriminating handloader. It’s built to complement our Inline Bullet Seating Dies, widely regarded as the gold standard for precision, while remaining compatible with other brands of hand-style seating dies. The press also works with L.E. Wilson neck sizing dies with interchangeable bushings, our punches and bases for separate decapping, and for pressing cases in and out of holders for use on Wilson Case Trimmers.

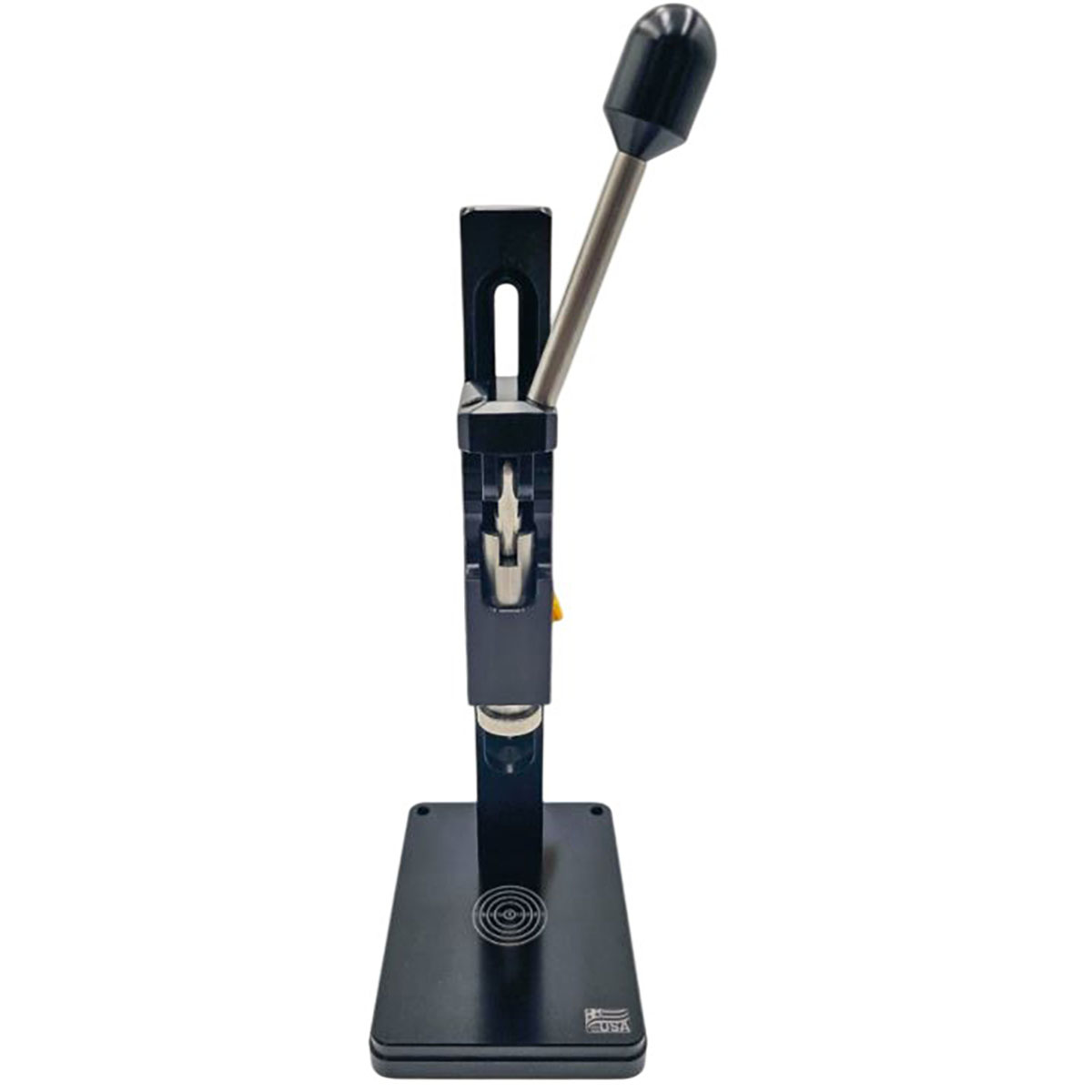

This arbor press gives the handloader exceptional feel and control during bullet seating. A central pivot mechanism delivers impressive force through a smooth 90-degree rotation. The cam-over feature both simplifies height adjustments and maximizes leverage at the critical moment. With ample adjustment range, it handles everything from small .17-caliber seaters up to large cartridges such as .408 CheyTac. The innovative V-channel guide rail prevents unwanted upward movement during operation while still allowing easy height adjustments.

Features

• Cam-over mechanism provides excellent leverage and feel, ideal for consistent neck tension and square seating
• Ergonomic design for comfortable, repeatable bullet seating

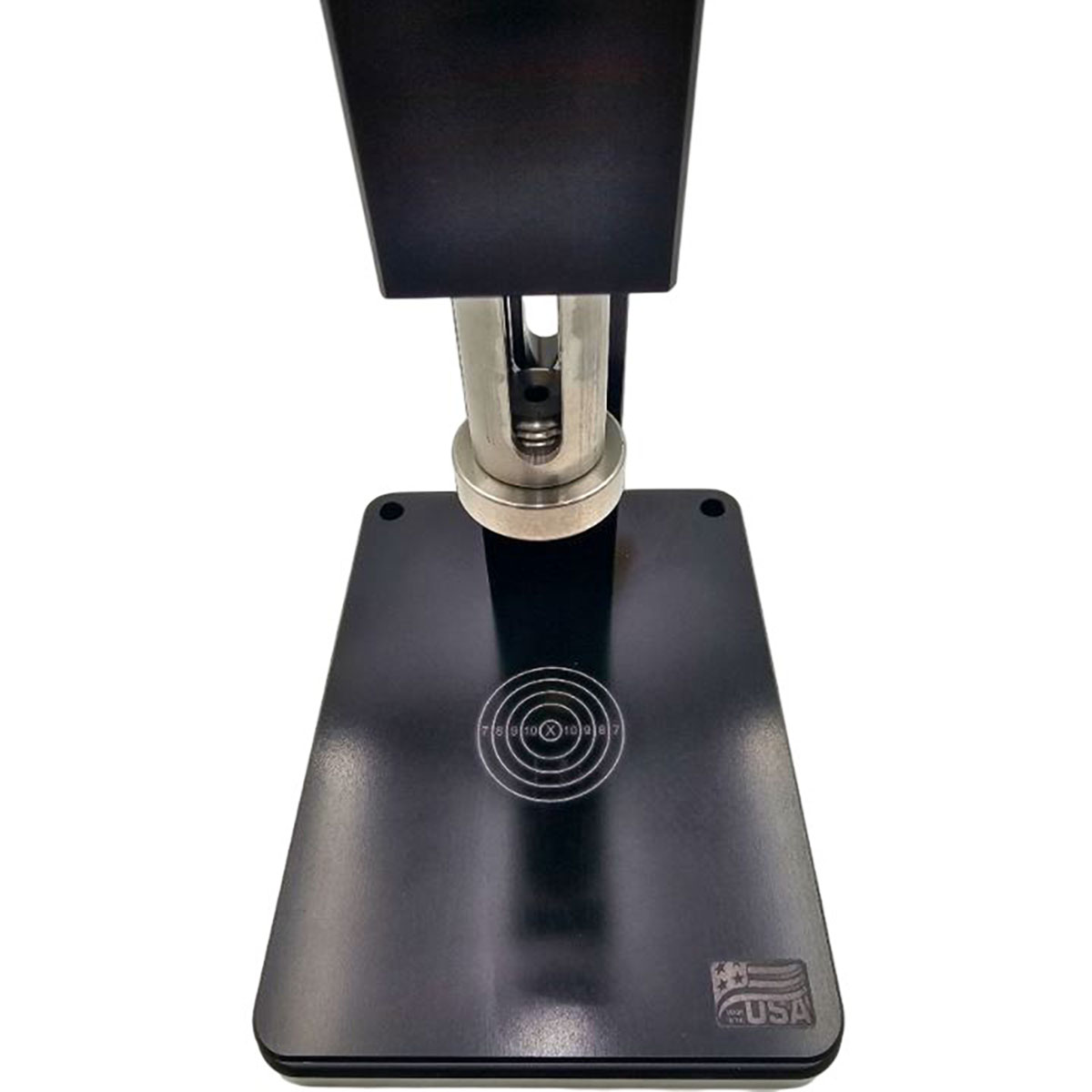

• Stable aluminum baseplate with engraved alignment target for easy centering
• Full one inch of press throw, exceeds most industry standards
• Seven inches of height adjustment to accommodate all L.E. Wilson seaters

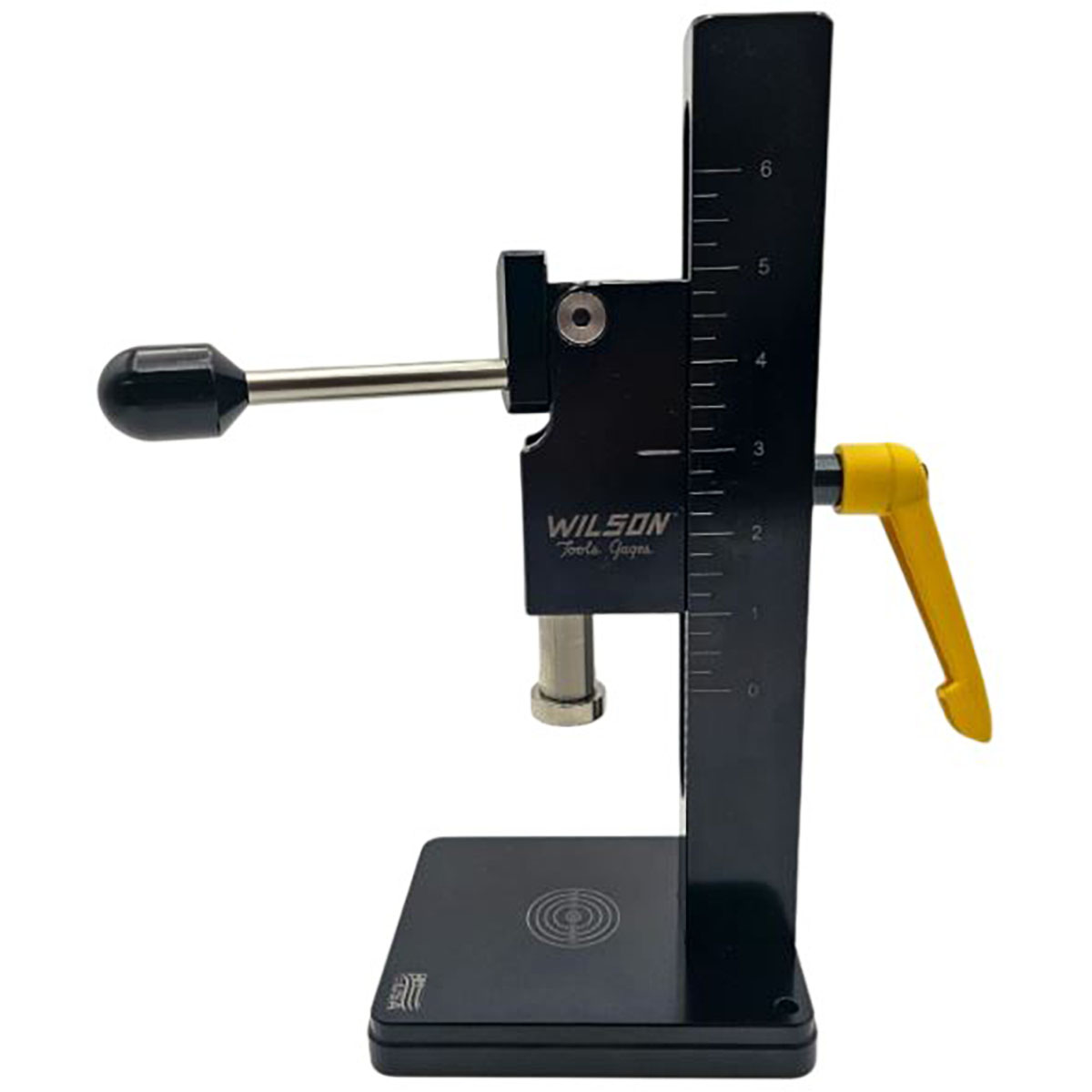

• Six-inch reference scale for precise, repeatable height settings across different seaters
• Precision-machined arbor cap with self-centering dimple for accurate decapping alignment
• Every component engineered for performance and longevity
• In-house manufacturing and assembly for complete quality control
• Made in the USA; Patent Pending

  Specifications

• Main components: machined from billet aluminum
• Turned components: machined from 303 stainless steel
• Aluminum parts: hard-coat anodized (MIL-A-8625 Type III) for a thick, durable, corrosion-resistant finish
• Finish: industrial-grade coating helps maintain appearance and function over years of regular use
• Overall height: 11.850"
• Baseplate dimensions: 5.500" × 4.250" × 0.735"
• Weight: approximately 4.5 lb
