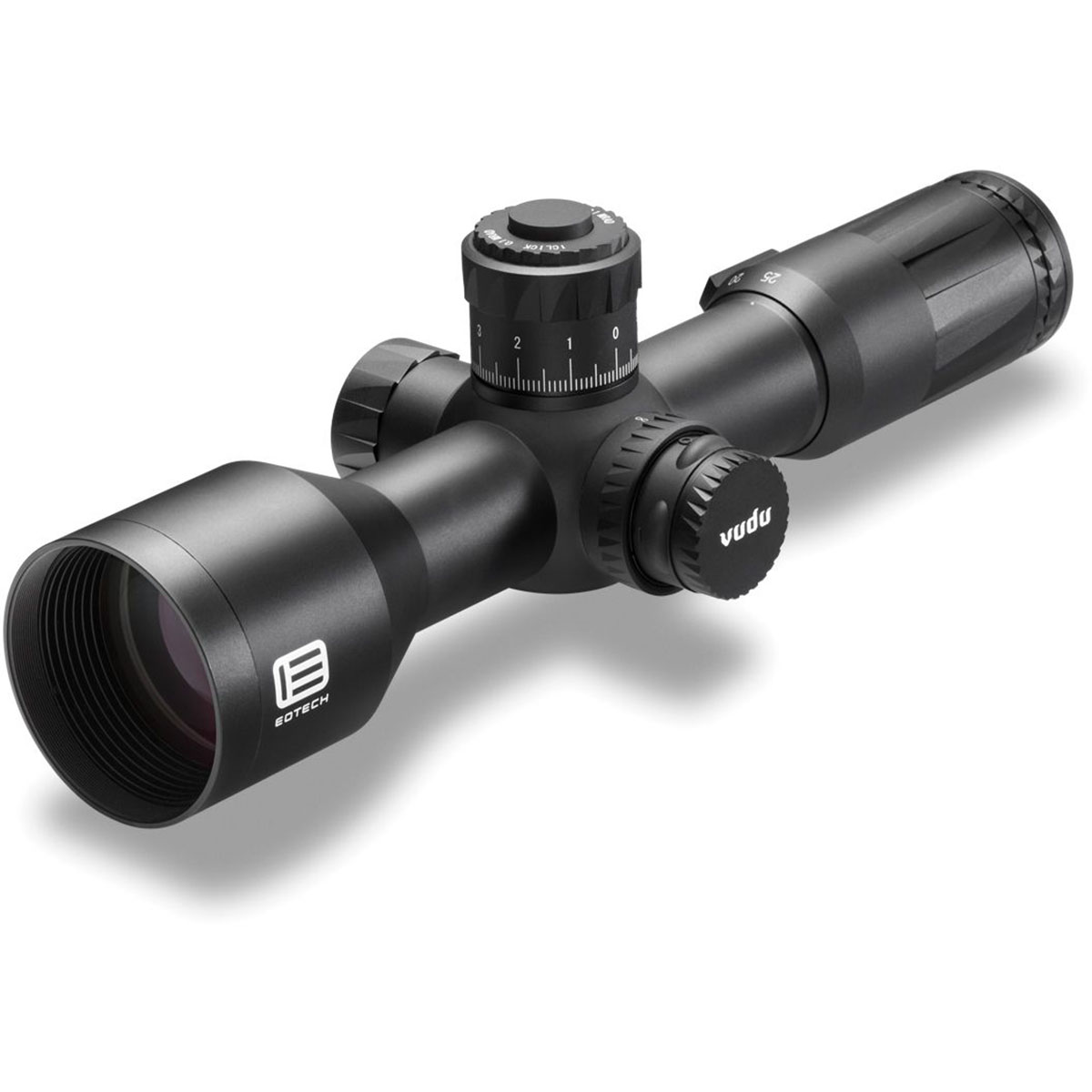

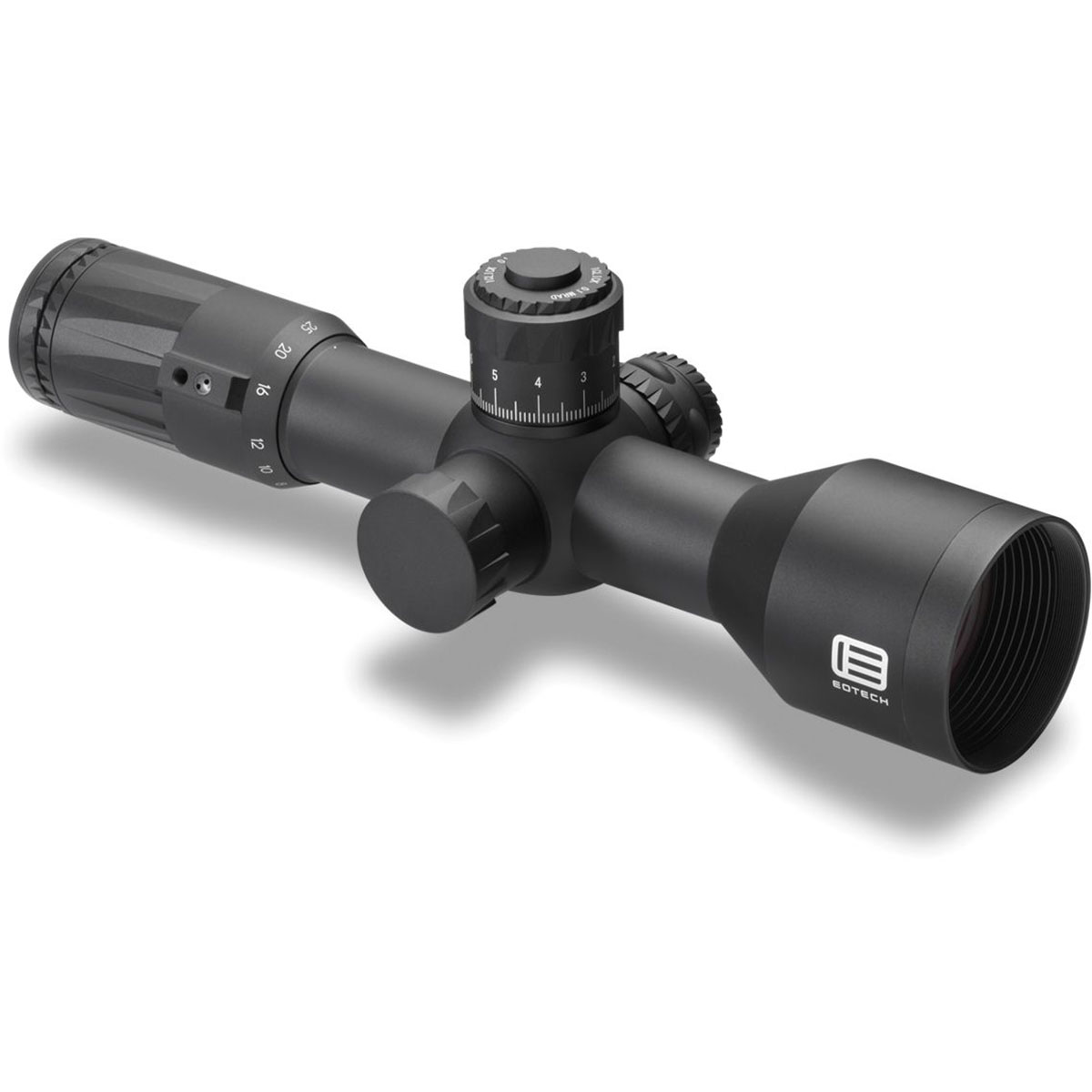

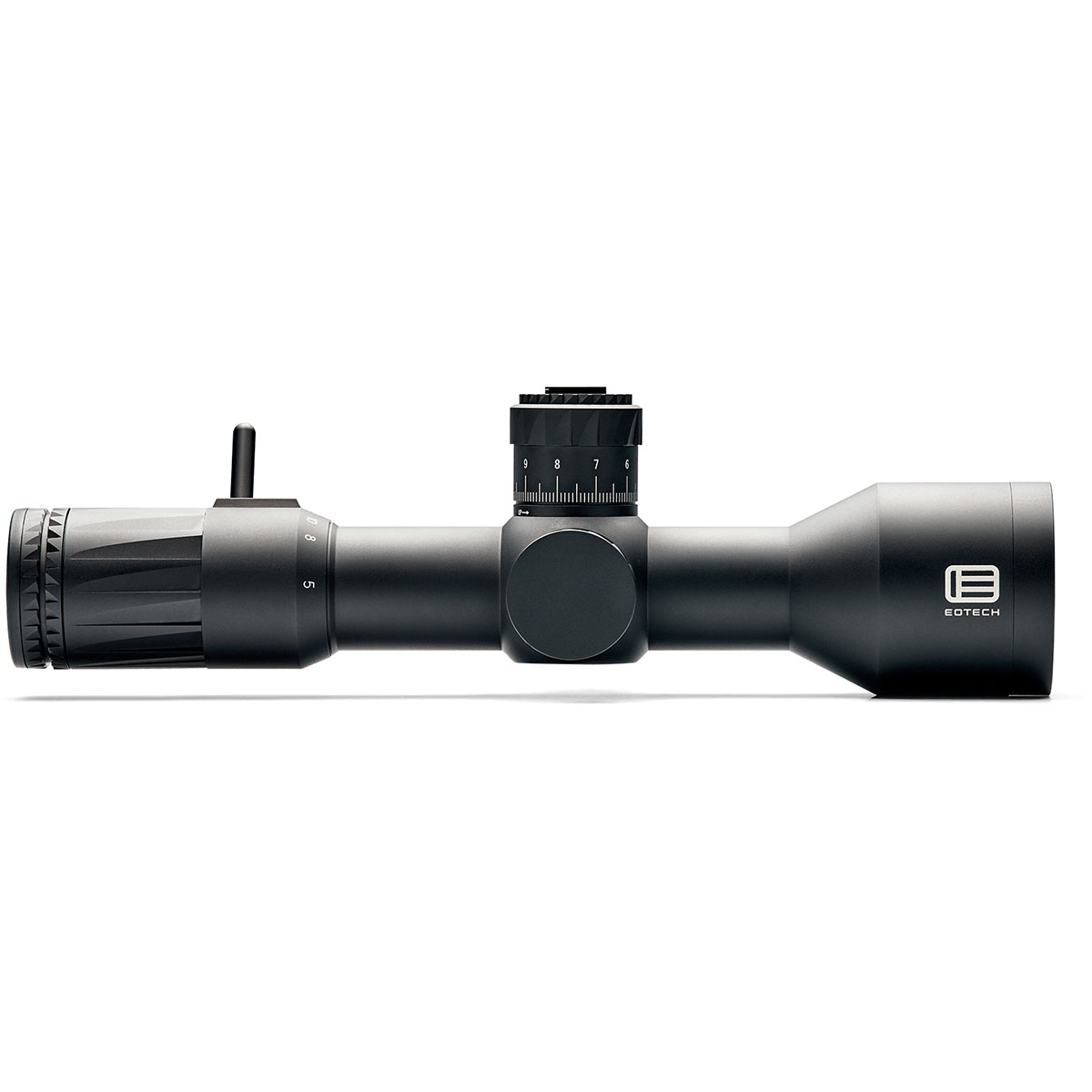

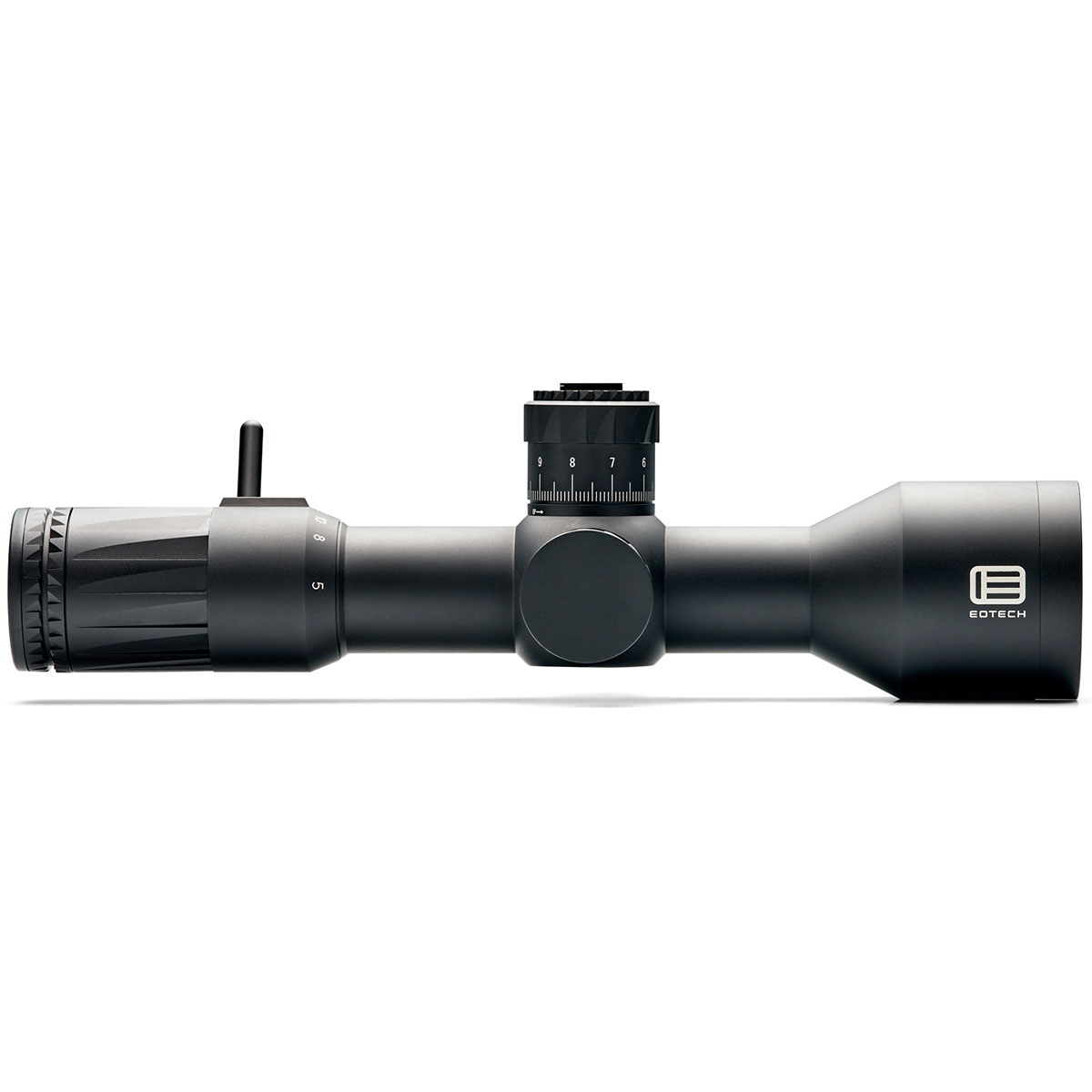

EOTECH Vudu® 5-25x50 FFP

The Vudu 5-25X50 is ideal for short platform rifles. At approximately 11.2 inches in length, the 5-25X is one of the shortest first focal plane rifle scopes on the market. The elevation turret includes a push/pull locking system and EOTECH’s EZ Chek Zero Stop. One unique advantage of the short design is that it provides the ability to attach either a clip-on night vision or thermal device in front of the scope.

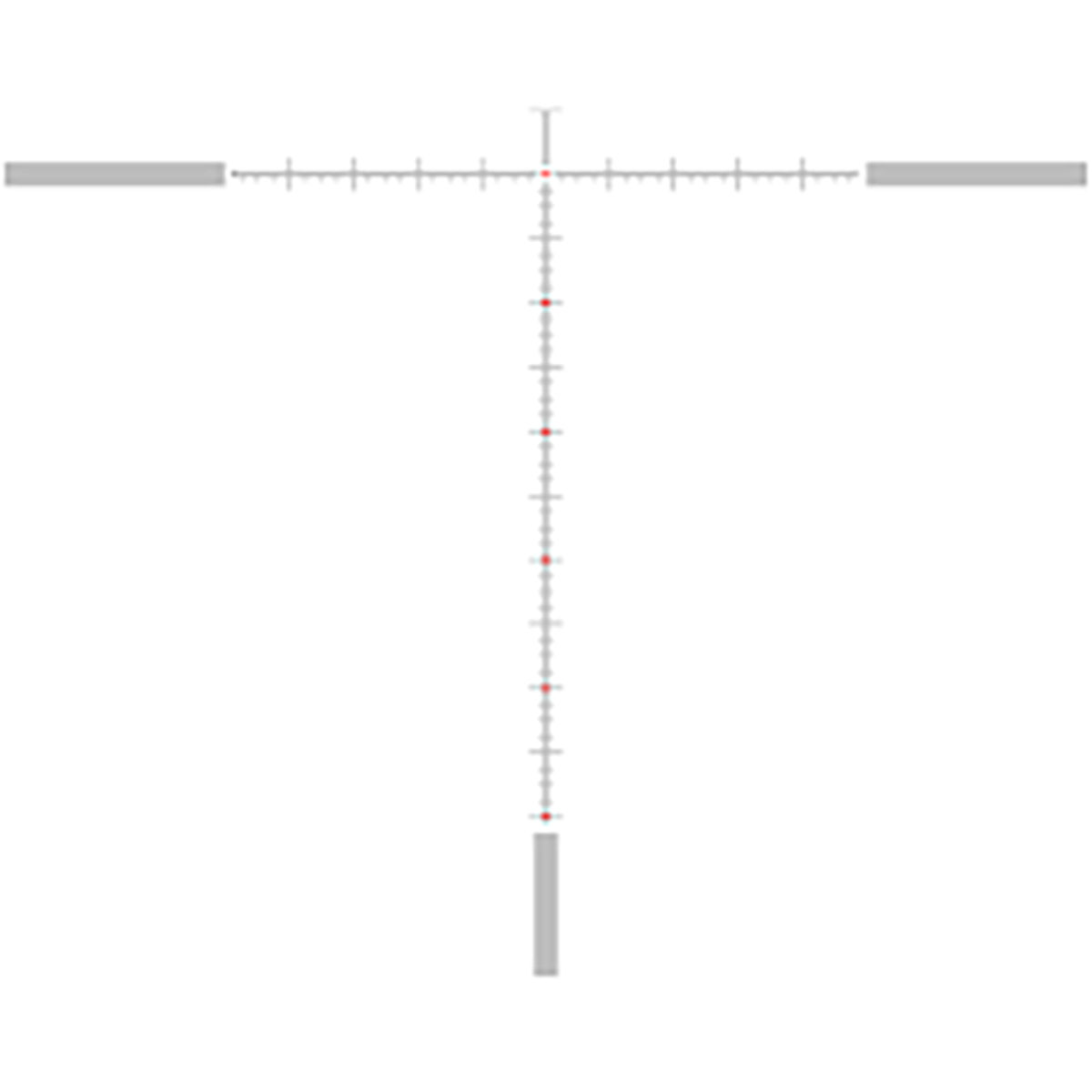

Vudu MD4 ReticleThe MD4 reticle is based on the Minute of Angle, or MOA, angle of measurement. With a known target size, this system allows the shooter to use angle ratios to determine distance of target with reliable accuracy. The MD4 reticle is 0.25 MOA per click adjustments that subtend to .25" at 100 yards.

Horus TR5 ReticleTREMOR5 Designed for a clearer field of view by removing the Rapid Range bars and moving target holds, making it more suitable for competition shooting.

FEATURES:

Aircraft Grade
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.

Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.

Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.

Water Resistant
The single-piece tube and O-ring seals prevents moisture and dust from entering the scope even in the harshest environments.

Anti-Reflective Lenses
XC™ high-density, low dispersion glass with anti-reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.

SPECIFICATIONS:

• First Focal Plane

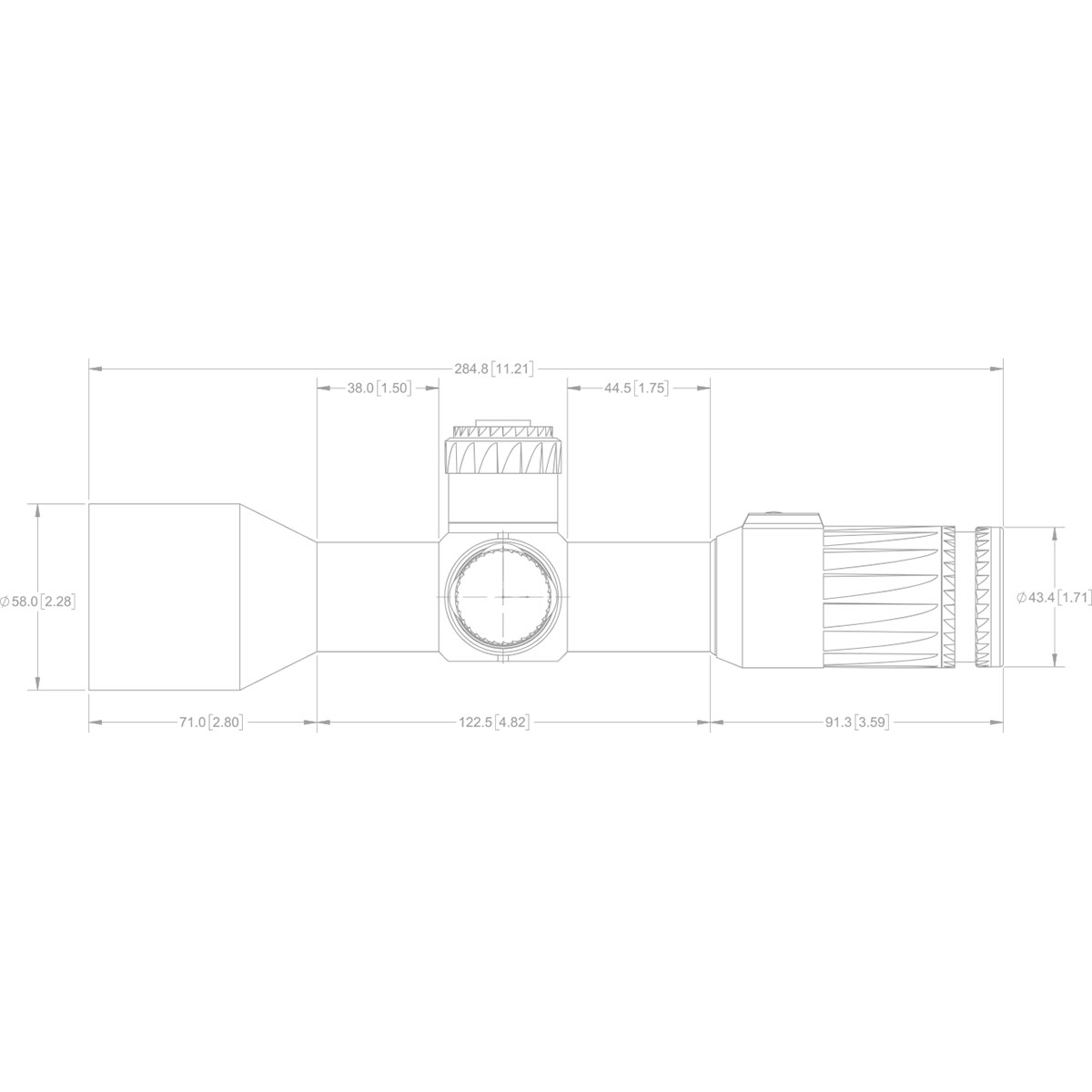

• Overall Length: 11.2" (285 mm)
• Weight: 29.5 oz (835 g)
• Magnification: 5-25X
• Tube Diameter: 34 mm
• Objective Diameter: 50 mm
• Power Source: CR2032
• Eye Relief: 5X: 2.96-3.71" (75-94 mm) 25X: 3.27-3.63" (83-92 mm)
• Field-of-View @ 100 Yards: 5X: 23.3 ft (7.1 m) 25X: 4.7 ft (1.43 m)
• Adjustment Graduation Per Click: 0.25 MOA OR 0.1 MRAD
• Adjustment Graduation Per Rotation: 34 MOA OR 10 MRAD
• Total Elevation Travel: 100 MOA OR 29 MRAD
• Total Windage Travel: 80 OR 23 MRAD
• Country of Origin: Made in Japan

INCLUDED IN THE BOX:

• Vudu® 5-25X50 Rifle Scope
• Operator Manual
• Reticle Manual
• Throw Lever
• Sunshade
• Lens Cleaning Cloth
• Battery
• Zero Stop Wrench
