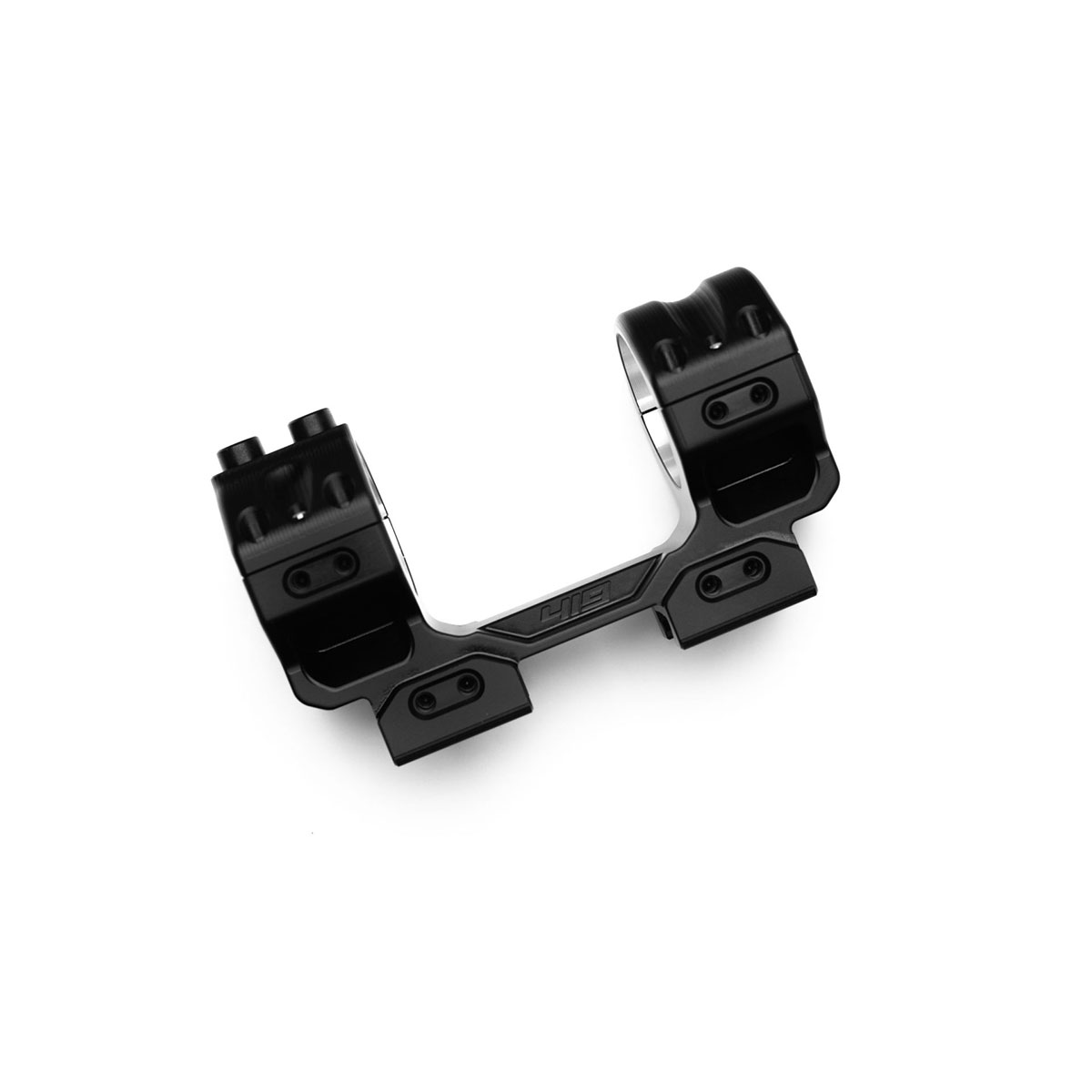

AREA 419 TACTICAL ONE-PIECE SCOPE MOUNT
When Area 419 set out to make the perfect scope mount, they knew what they needed to make something that was reliable and consistent at a degree you won’t find anywhere else on the market. This led down a rabbit-hole, ultimately arriving on a process that gets you final-bore matched rings, with raw aluminum internals, for a grip on your optic that is more reliable and more true than anything else made – as well as an incredible amount of robustness without adding unnecessary weight.
Like most mounts, these begin as separate parts. Area 419 are making the bases and caps in batches. While many will make these parts, send them to anodize, and then just assemble, they produce around the extra steps. Once these parts return from anodize, they are fully assembled, placed back into specially produced rail fixtures, with the caps torqued to spec over specially made spacers (to give the rings space to torque down on the optic), and final-bored as sets in Area 419’s world-class machining centers. Mounts are then brought off the machine in sets, QC’d and packaged, ensuring that you receive a mount that was finished perfectly.
Is it overkill? Probably. But they think it’s the right way. So that’s what they are going to do.
NOTE: These scope mounts DO NOT include a diving board.
FEATURES
- CNC Milled in America from American 7075 Aluminum
- Raw aluminum, precision bored scope contact surfaces for maximum grip
- Final-bored in sets, and never fully disassembled after boring
- Multiple accessory mounting points
- Separate rail clamping bars for maximum grab on the pic rail
- Inset clamping feet, allowing for maximum mounting adjustment and pic rail utility
- Steel guide pins between base and caps, aiding in alignment
- Custom nitrided stainless hardware

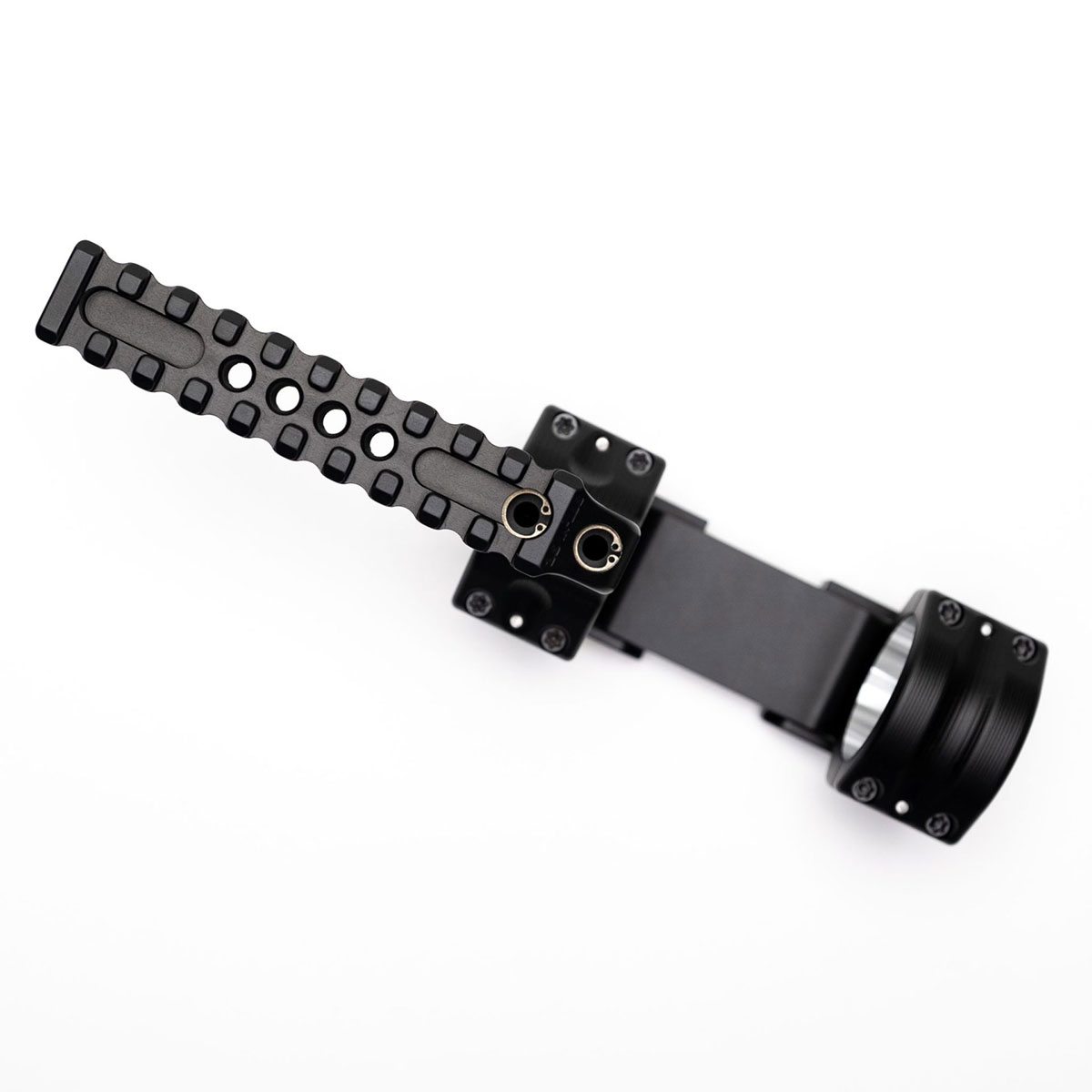

- Patent-Pending ultra-rigid and repeatable top accessory attachment – attach optional Tactical Diving Board.
Available options:
430107289
,
430107290
,
430107291
,
430107292
,
430107293
,
430107298
,
430107299
,
430107284
,
430107288
,
430107285
,
430107286
,
430107294
Action Length:
Color:
Black
Attachment Type:
Picatinny
Item Length (Inches):
4.740
Item Weight (lbs):
0.480
Elevation:
0MOA
Quantity:
1
Ring Height:
1.54
Item Width (Inches):
1.180
Finish:
Material:
Aluminum
Item Height (Inches):
1.540
Ring Type:
High
Model Number:
Scope Tube Diameter:
30mm
Mount Type:
Picatinny Rail
Shop All ED BROWN
Tactical 30mm 0MOA High (1.54") 1-Piece Scope Mount Black
Your Price
MAP:
$330.00
Crow # 430107286
MFR # 419-TSM-3039
UPC 810080182349
