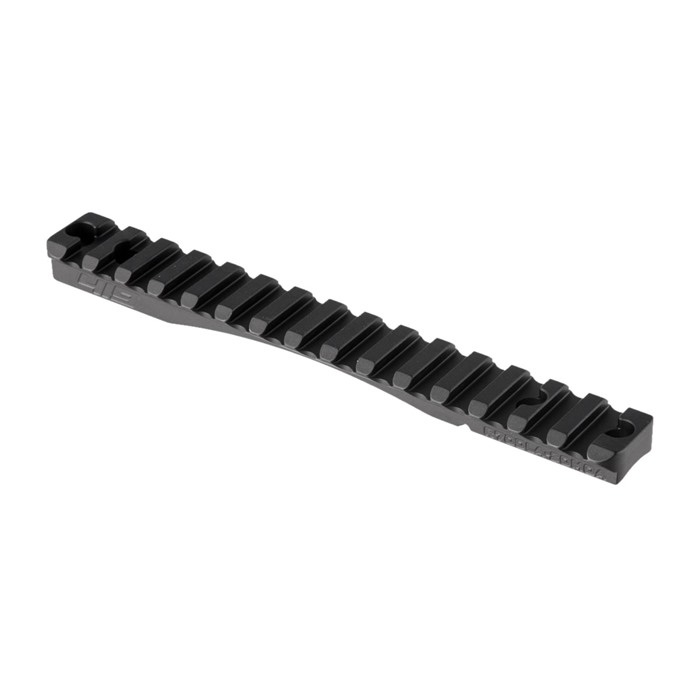

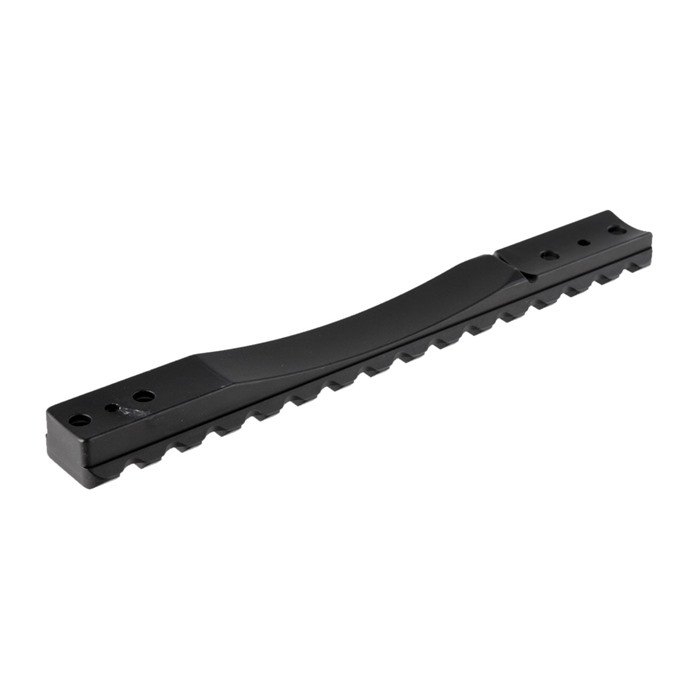

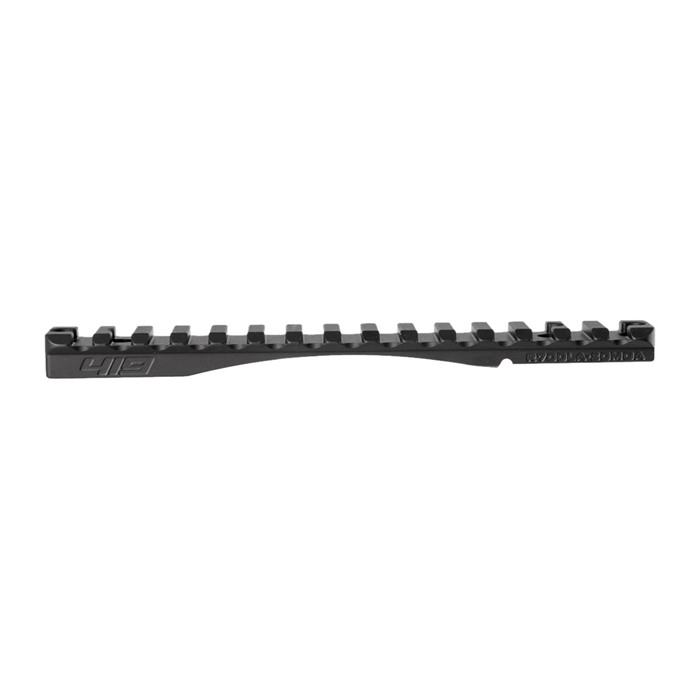

The Area 419 Remington 700 Long Action Improved Scope Rail is machined in house on a 4-axis HAAS VMC from 7075 Aluminum. Straight off the mill there is not a single sharp edge left, all corners are radiused and any necessary harsh corners are chamfered.
- Compatible with #6 and #8 screws, no modification necessary
- All mating areas are 1:1 surface machined to exact profile of the Remington action for a solid fit
- Machined to MIL-STD-1913
- Ejection port cut blends seamlessly into action and gives plenty of room for top loading ADL style rifles
- Type III Hardcoat Black anodized
- (4) 6-48 and (4) 8-40 Torx T10 screws and wrench included
- All screws are the same length and sized to not interfere with barrel threads, no more guessing which screw goes where
The Improved Scope Rail is available in two versions: Full Slotted and ARC Top. The Full Slotted is compatible with all picatinny scope mounts including Spuhr and MPA which have a recoil lug in the center of the mount. The ARC Top is an Area 419 original design, mainly for aesthetics just to set it apart (will not work with mounts like Spuhr or MPA).
Action Length:
Long
Action Type:
Bolt Action
Hand:
Elevation:
20 MOA
Color:
Black
Attachment Type:
Item Width (Inches):
0.820
Finish:
Matte
Material:
Steel
Item Height (Inches):
0.490
Make Model Fit:
Remington.700
Item Length (Inches):
6.250
Model Number:
Full
Ring Type:
Mount Type:
Picatinny Rail
Item Weight (lbs):
0.120
Optic Fit:
Number of Bases:
1
Ring Height:
Threads:
Scope Tube Diameter:
Prop 65 restriction:
This product can expose you to chemicals including lead, which is known to the state of california to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warning.ca.gov
Shop All ED BROWN
Remington 700 Long Action 20 MOA Full Slot
Your Price
MAP:
$100.00
Crow # 100032686
MFR # 419-ISR-R700LA-
UPC 853675008839
Iowa Warehouse
North Carolina Warehouse
