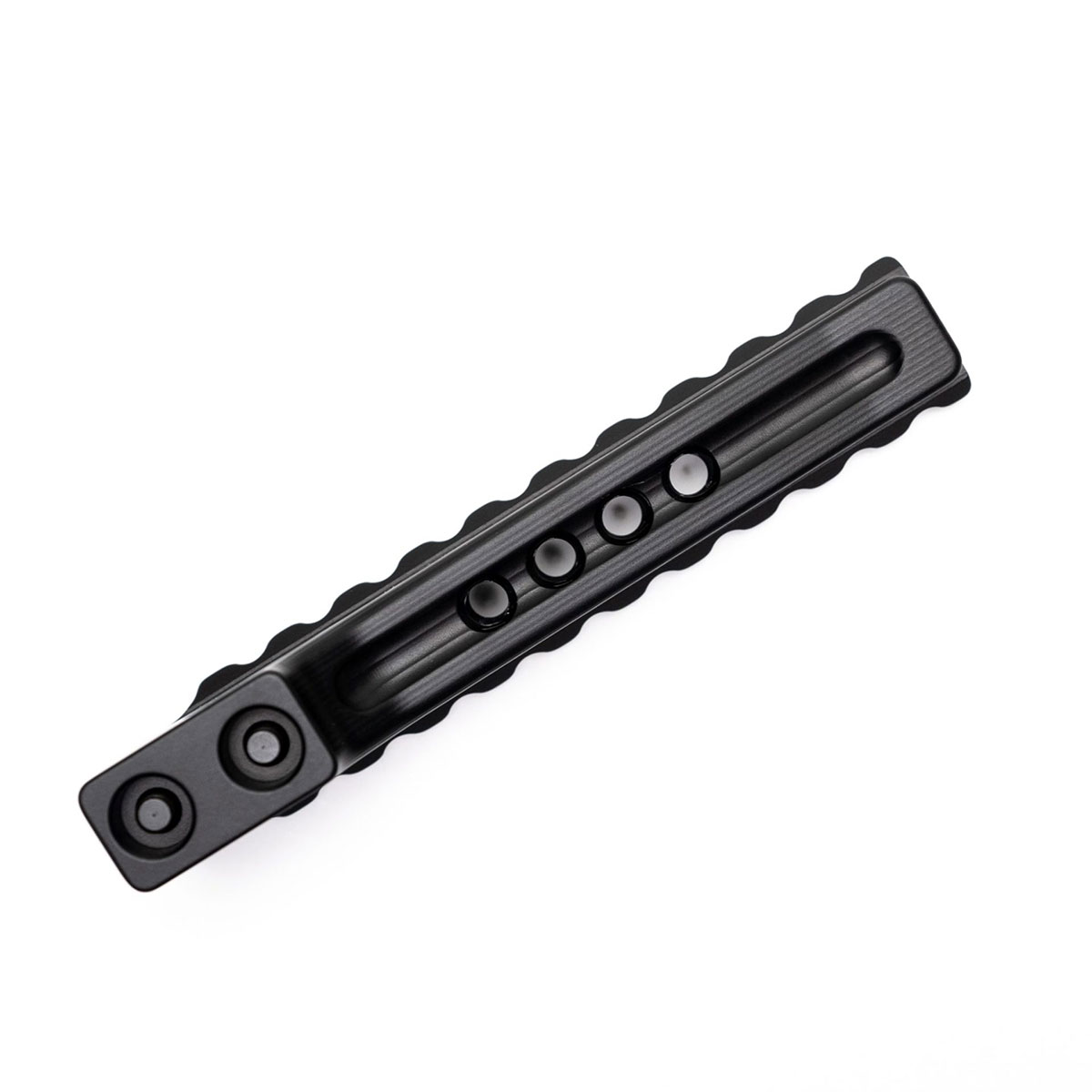

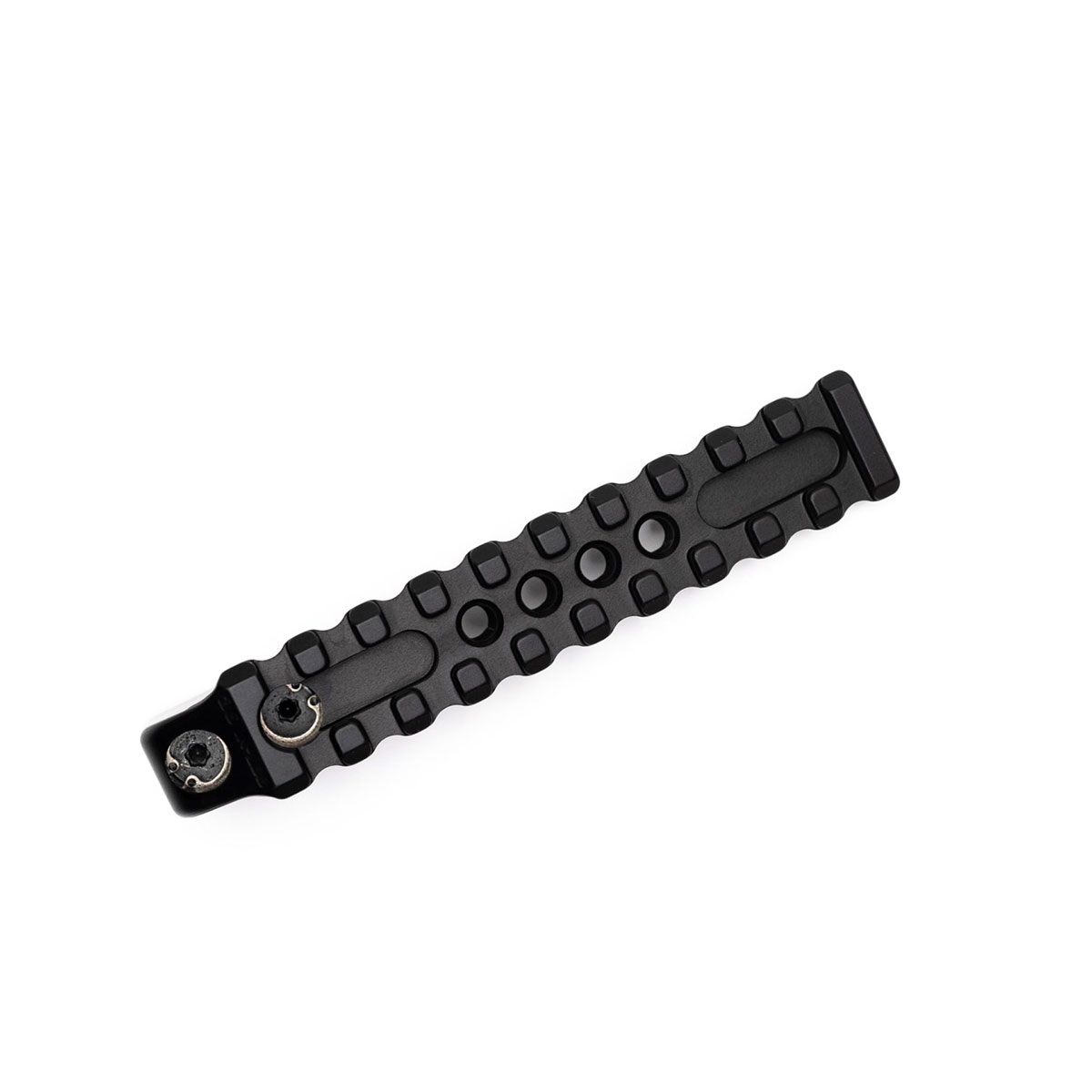

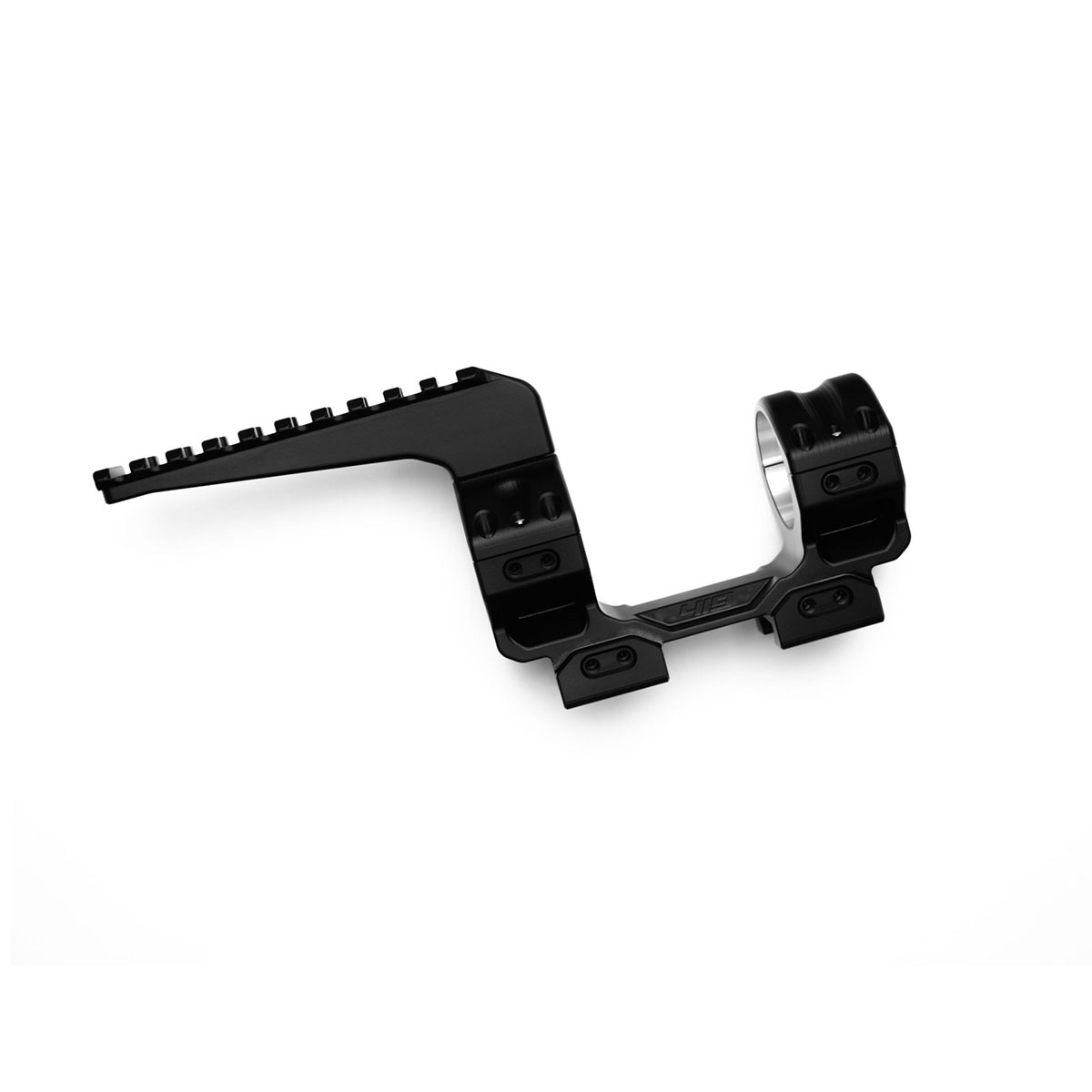

LOW-HEIGHT DIVING BOARD ATTACHMENT FOR TACTICAL MOUNTS
This rock solid diving board brings ultimate functionality to the Tactical One-Piece Scope Mount. The diving board mounts via Area 419’s patent pending dual taper mounting point on the top of the scope cap, delivering the most secure attachment possible. Useful for items ranging from levels and dope cards to red dots and weapons-mounted laser range finders. The durability and rigidity of this piece are the best in class, making your return to zero that much better.
Standard Height Specs
- 1.11″ tall, 1.93″ from the optical center to top of pic on a 34mm optic
- Four 1/4 x 20 holes
- 10 slot MIL-STD-1913 spec rail
- 2.5oz, including all hardware
- Type III Hardcoat Black anodized
- Captive mounting screws
- CNC Milled in America from American 7075 Aluminum
Low Height Specs
- 0.70″ tall, 1.52″ from the optical center to top of pic on a 34mm optic
- Three 1/4 x 20 holes
- 6 slot MIL-STD-1913 spec rail
- 1.5oz, including all hardware
- Type III Hardcoat Black anodized
- Captive mounting screws
- CNC Milled in America from American 7075 Aluminum
Attachment Type:
Direct Thread
Color:
Black
Action Length:
Item Weight (lbs):
0.160
Finish:
Type III Anodized
Item Width (Inches):
0.830
Elevation:
Material:
Aluminum
Quantity:
1
Model Number:
Standard Height
Item Height (Inches):
1.100
Mount Type:
Picatinny Rail
Scope Tube Diameter:
Ring Type:
Item Length (Inches):
4.750
Ring Height:
Shop All ED BROWN
Standard Height Diving Board for Tactical 1-Pc Scope Mount
Your Price
MAP:
$80.00
Crow # 430107300
MFR # 419-TSM-DB
UPC 810080182141
