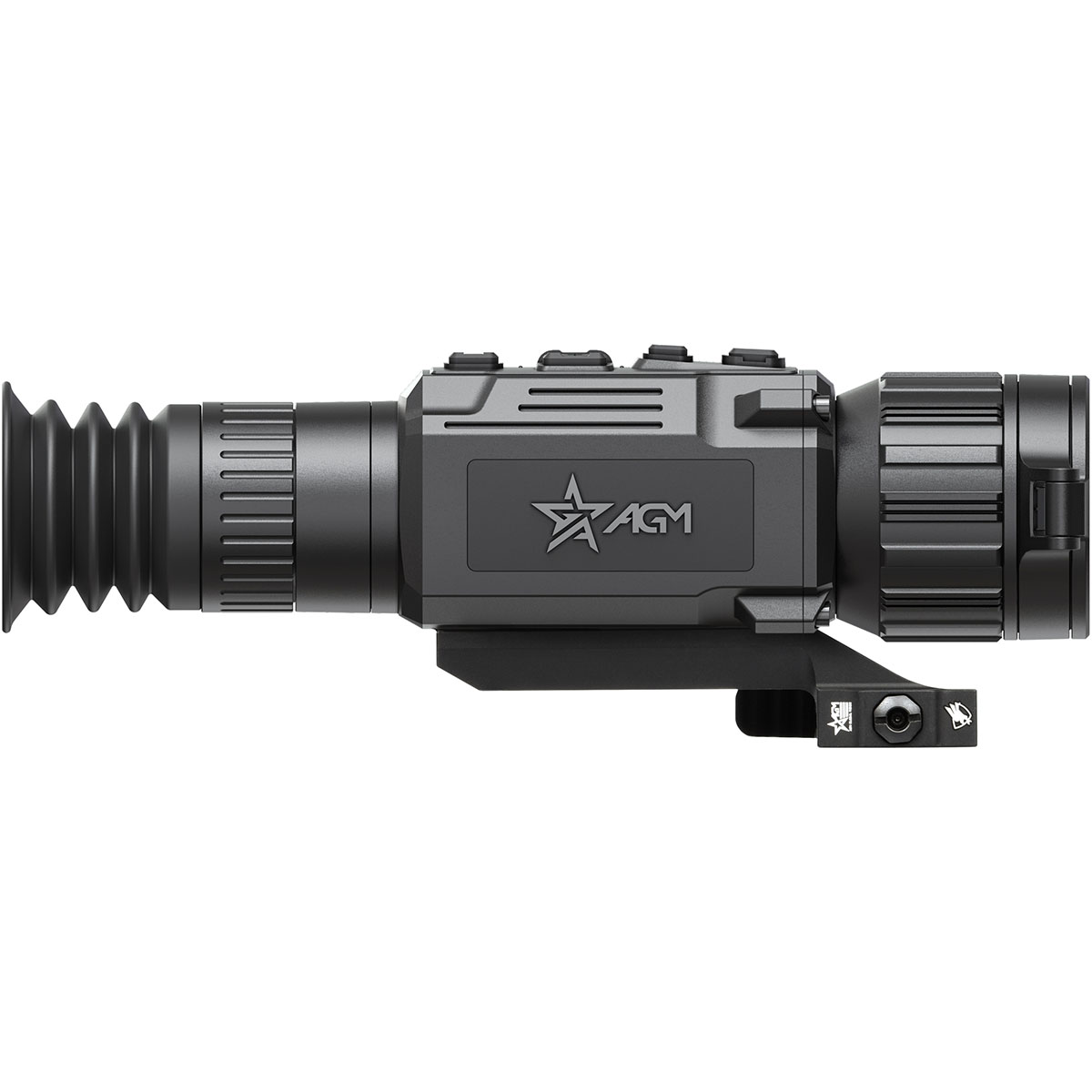

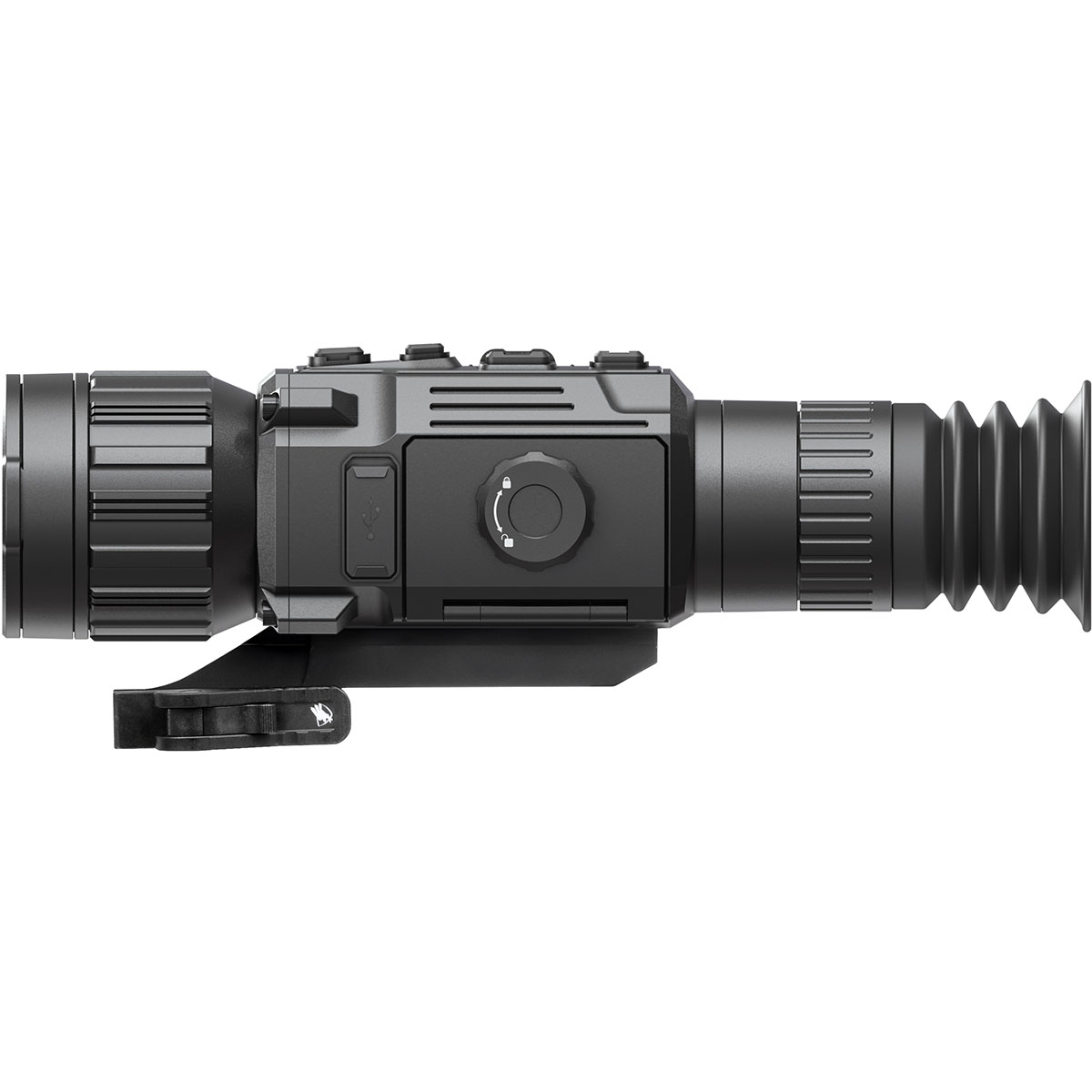

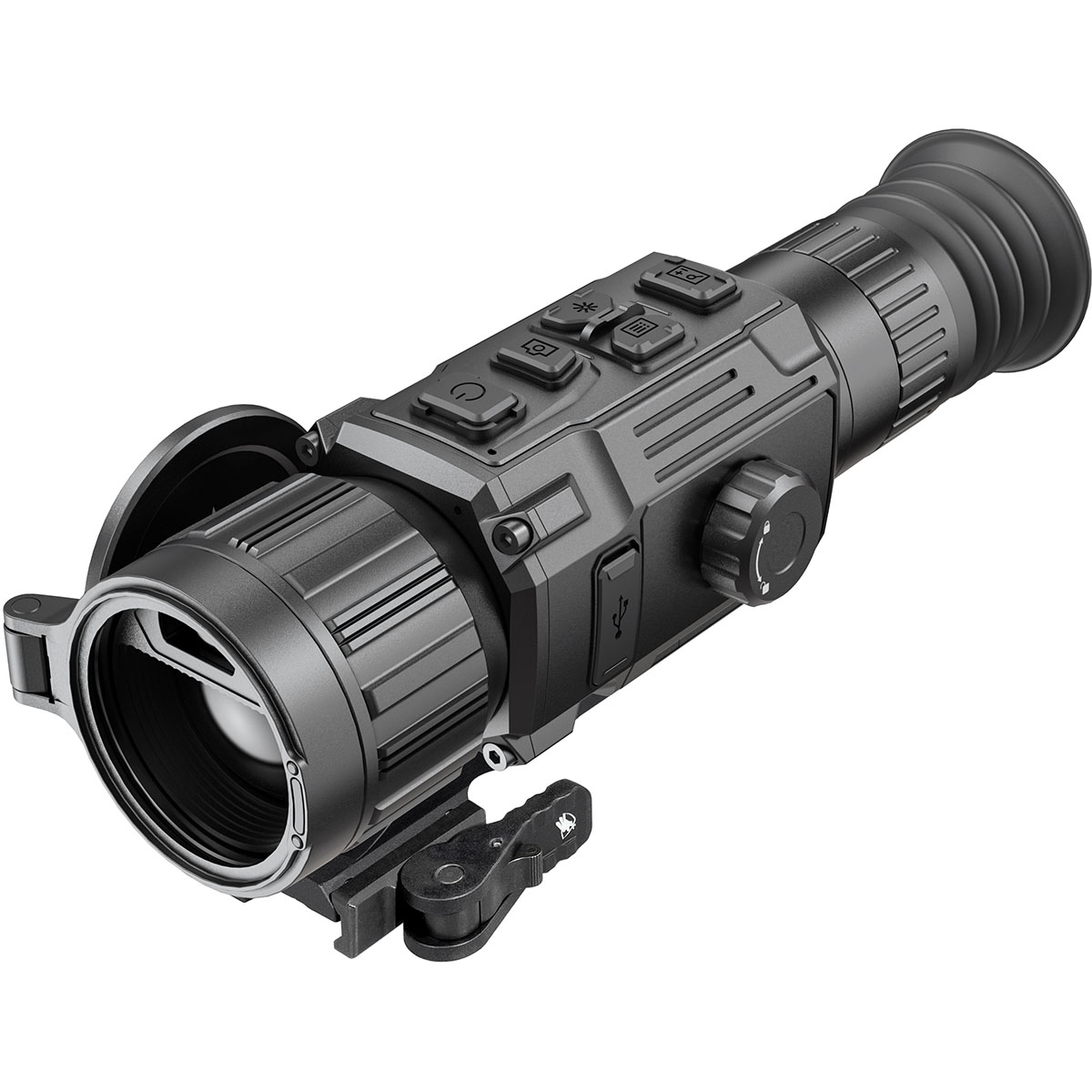

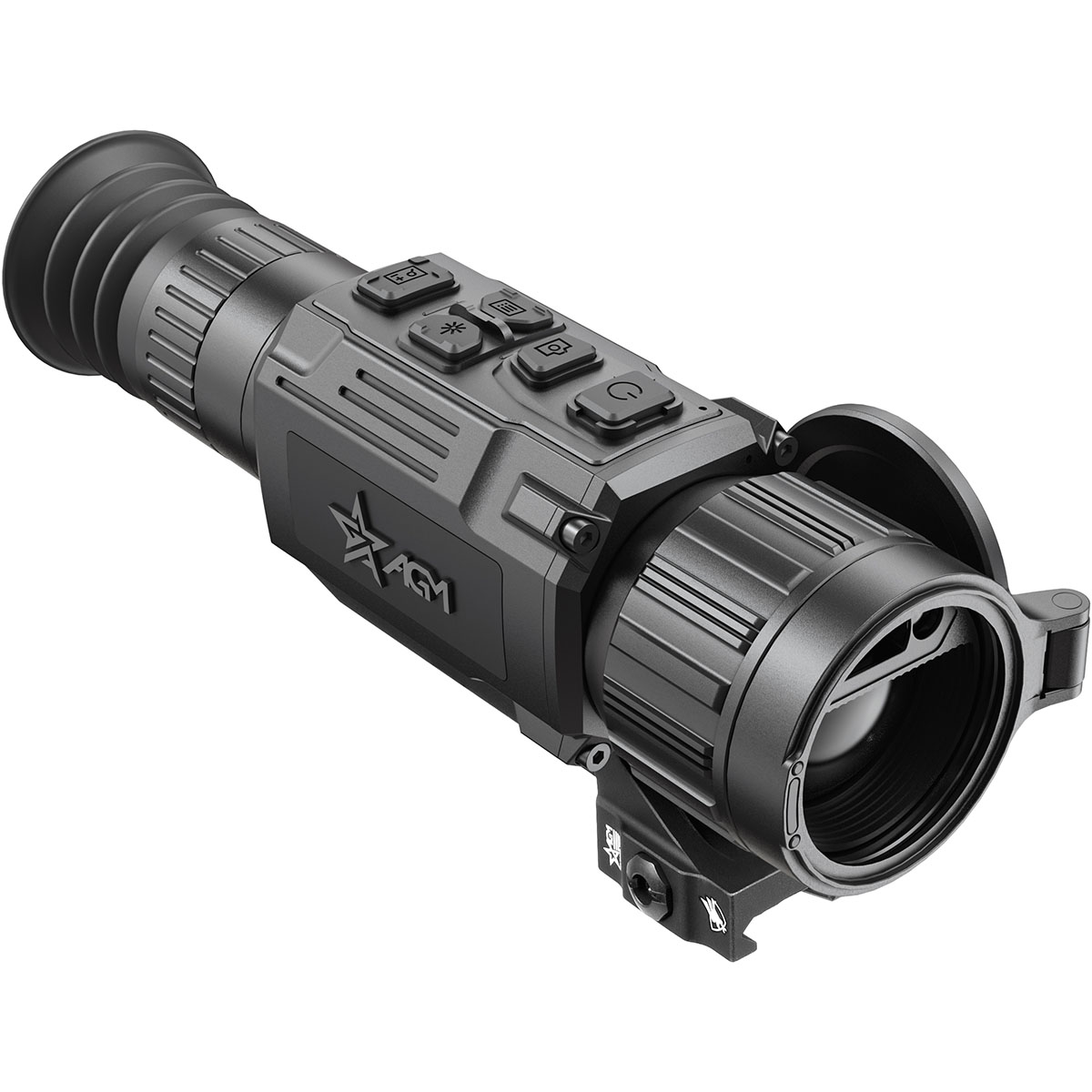

AGM GLOBAL VISION AGM RATTLER V3 35-640 35MM 2.5X-20X MAG 640X512 RES W/LASER RANGE FINDER

Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family was upgraded with the introduction of the RattlerV2’s, the new RattlerV3 LRF proves that evolution never stops.

The RattlerV3 LRF 35-640 pairs a 35 mm Germanium lens with an industry‑leading sub‑15mK thermal sensor and a new 2560×2560 high‑resolution display, combining to produce the best 640‑resolution thermal image. These advanced technical features work together to deliver a detection range of up to 1.5 miles.

The RattlerV3 LRF also introduces once‑inconceivable in‑lens laser rangefinder technology to the compact Rattler series. A fully integrated 1,000‑meter laser rangefinder is paired with a new onboard ballistic calculator, dramatically expanding precision and long‑range capability.

A newly designed eyepiece gives the RattlerV3 LRF 35-640 a base magnification of 2.5X, making it an ideal option for predator hunters operating in wide‑open terrain where longer‑range engagements are common. It is also the first Rattler ever to feature a shutterless NUC along with AGM’s powerful new Image Boost 2.0 imaging algorithm.

Large, sturdy buttons are designed to aid operation with gloved hands in cold winter weather, while the removable, rechargeable NE‑4400 battery provides one of the most robust and easy‑to‑install battery systems on the market.

The firmware package delivers an exceptional level of customization, including an onboard pitch scale, ten brightness and contrast settings, warm and cold viewing modes, multiple color palettes, picture‑in‑picture, ballistic calculation, onboard video recording with sound, Wi‑Fi hotspot capability, multiple zeroing profiles, shot‑activated video recording, defective pixel repair, hotspot locator, and multiple laser range‑finding modes.

Also included is an American‑made ADM mounting system.

FEATURES

• Superior sub-15 milikelvin thermal sensitivity
• 640×512 resolution with 12-micron sensor
• Built-in 1,000m laser rangefinder in the lens
• Integrated ballistic calculator
• Large OLED display with 2560x2560 resolution
• Shutterless technology
• Various reticle types and colors
• 2.5x to 20x magnification
• On-board video/audio recording and image capture
• Built-in EMMC storage (64 GB)
• Shot-Activated Recording (SAR)
• Wi-Fi data transmission
• Standby mode
• Over 5.5 hours battery life
• External power supply compatibility
• Waterproof & shockproof
• 5-year warranty

SPECS

• Frame Rate: 50 Hz
• Ballistic Calculator: Yes
• Shot-Activated Recording: Yes
• Max. Recoil: 1000 g / 0.4 ms
• Dimensions: 237 × 66 × 67 mm (9.3 × 2.6 × 2.6 in)
• Flat Field Correction (FFC): Semi‑Auto, Manual
• Palettes: Yes
• Weight (w/o batteries): 0.73 kg (1.6 lb)
• Exit Pupil Diameter: 6 mm
• Reticle: 10 types, 4 colors, on/off
• Distance Measurement: Built‑in Laser Rangefinder (10 m to 1000 m, ±1 m accuracy)
• Picture‑in‑Picture Mode (PIP): Yes
• Video Recording: Yes (1280 × 1280)
• Defective Pixels Correction (DPC): Yes
• Audio Recording: Yes
• Magnification: 2.5x – 20x
• Image Sensor: 12μm VOx Uncooled Focal Plane Array
• Standby Mode: Yes
• Resolution: 640 × 512
• Detection Range (6' object): 2480 m (2710 yd)
• Snapshot: Yes (1280 × 1280)
• Lens System: 35 mm; F/1.0
• NETD: Less than 15 mK (@25°C, F# = 1.0)
• Field of View (H × V): 12.5° × 10.0° (21.9 × 17.6 @ 100 m)
• Diopter Adjustment Range: -5 D to +5 D
• Focusing Range: 10 m
• Hot Track: Yes
• Eye Relief: 45 mm
• Display: 2560 × 2560, 1.03‑inch OLED
• Storage: Built‑in EMMC (64 GB)
• Battery Type: One replaceable rechargeable NE‑4400 Li‑Ion battery (two NE‑4400 batteries included)
• Wi‑Fi: Yes
• Battery Life (Operating): ≥5.5 hours (25 °C, hotspot off)
• External Power Supply: 5V DC / 2A, USB Type‑C interface
• Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)
• Protection Level: IP67

INCLUDED IN PACKAGE

• Thermal Imaging Rifle Scope
• Mount
• Two NE-4400 Rechargeable Batteries
• Charger
• USB Cable
• Lens Cloth
• Manual
• Carrying Case
