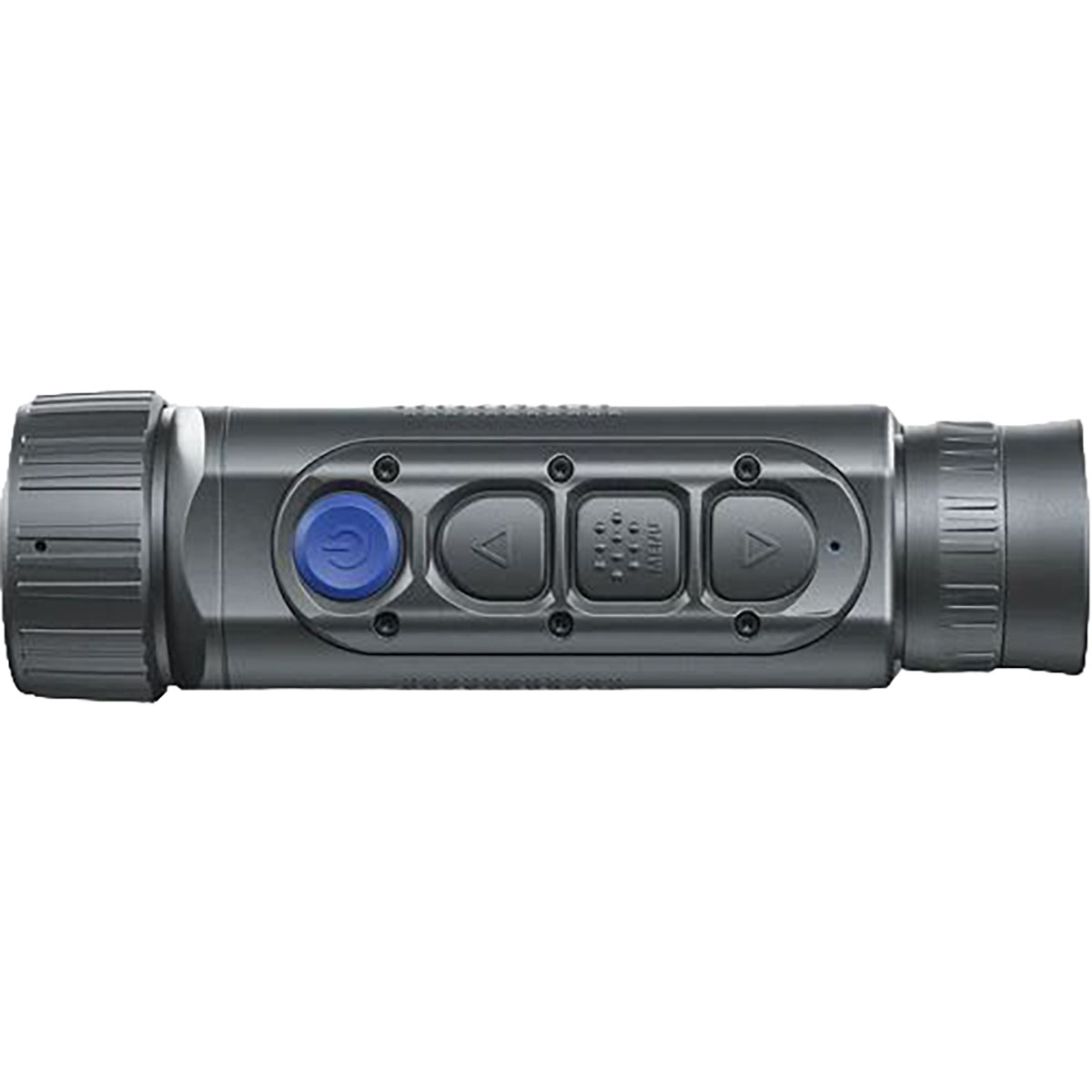

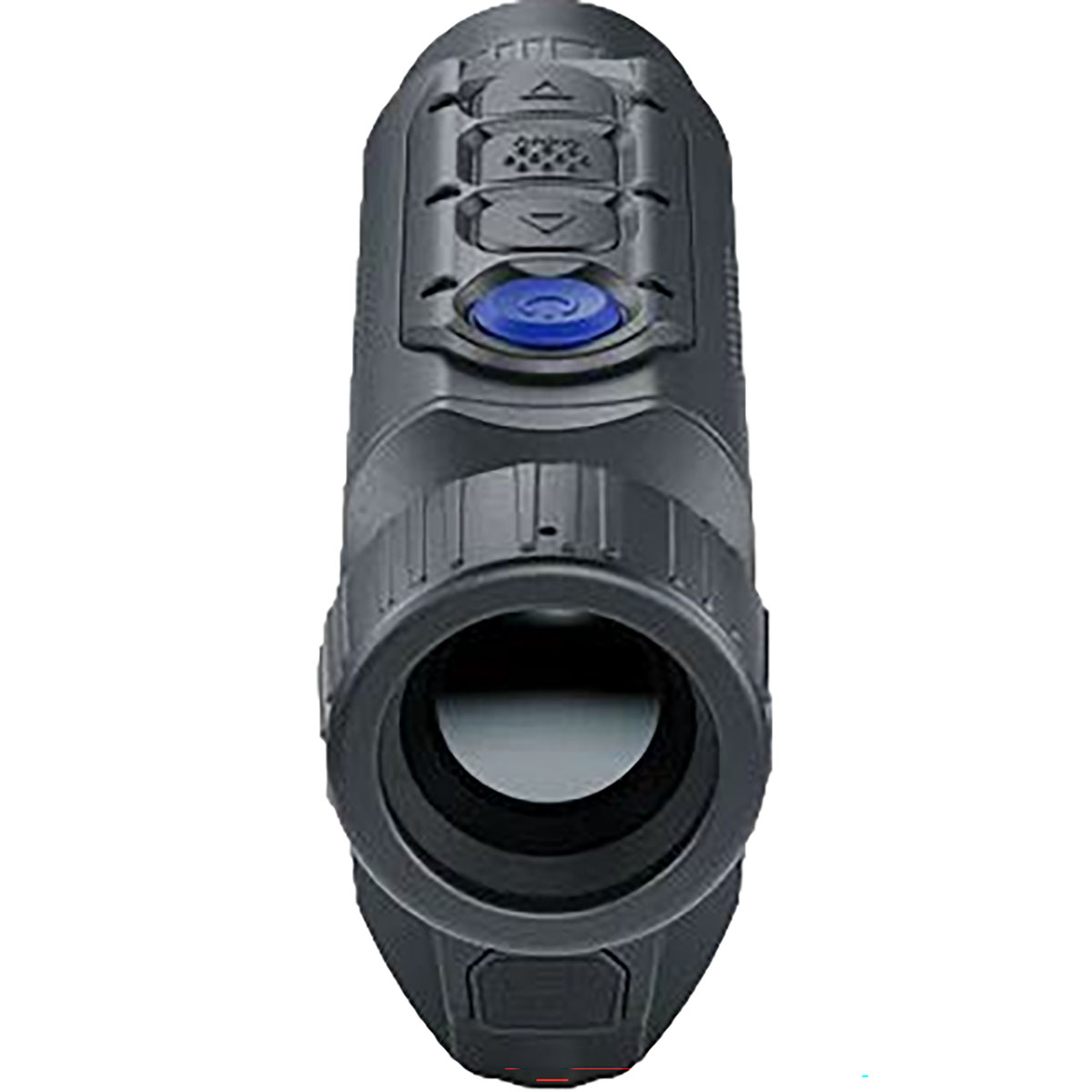

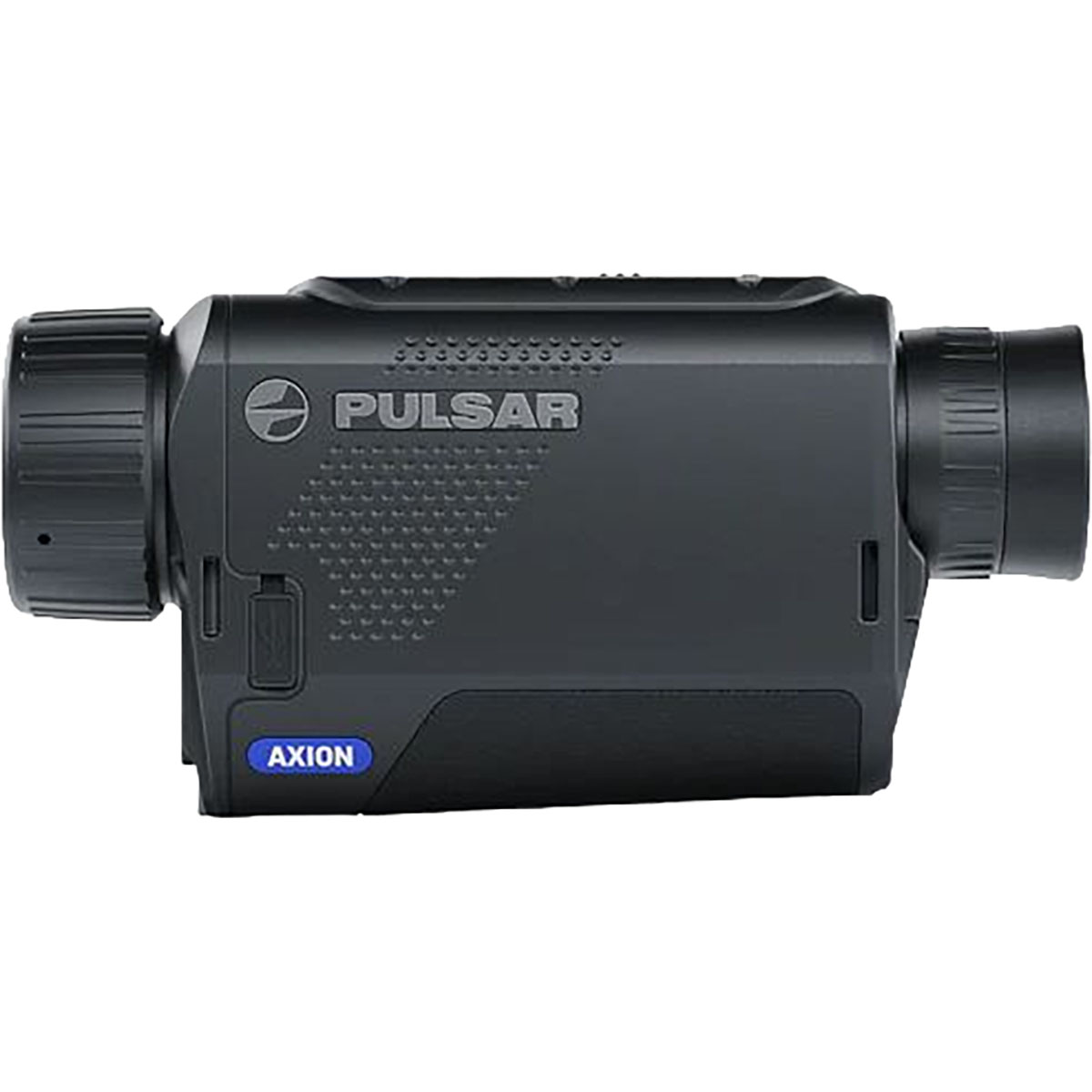

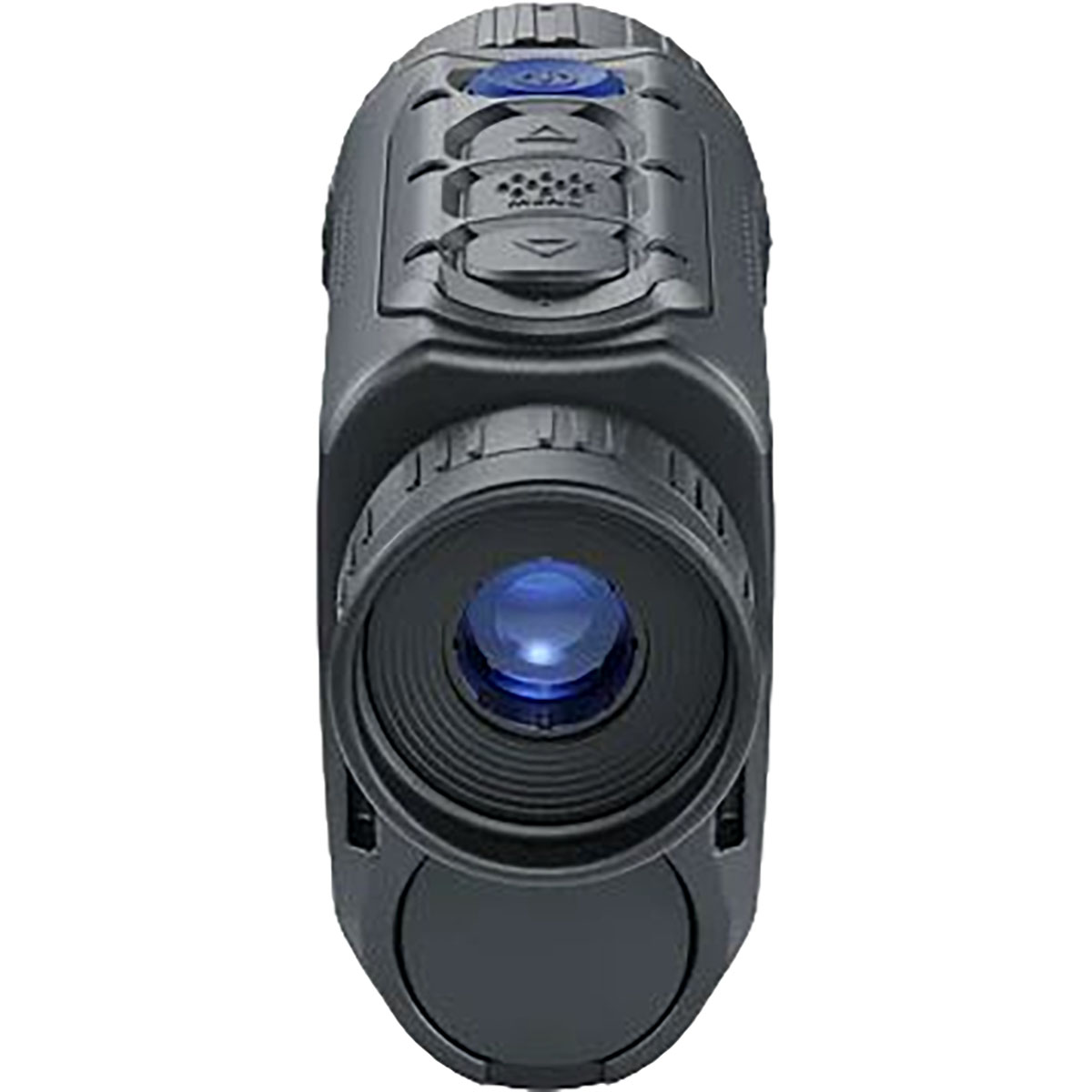

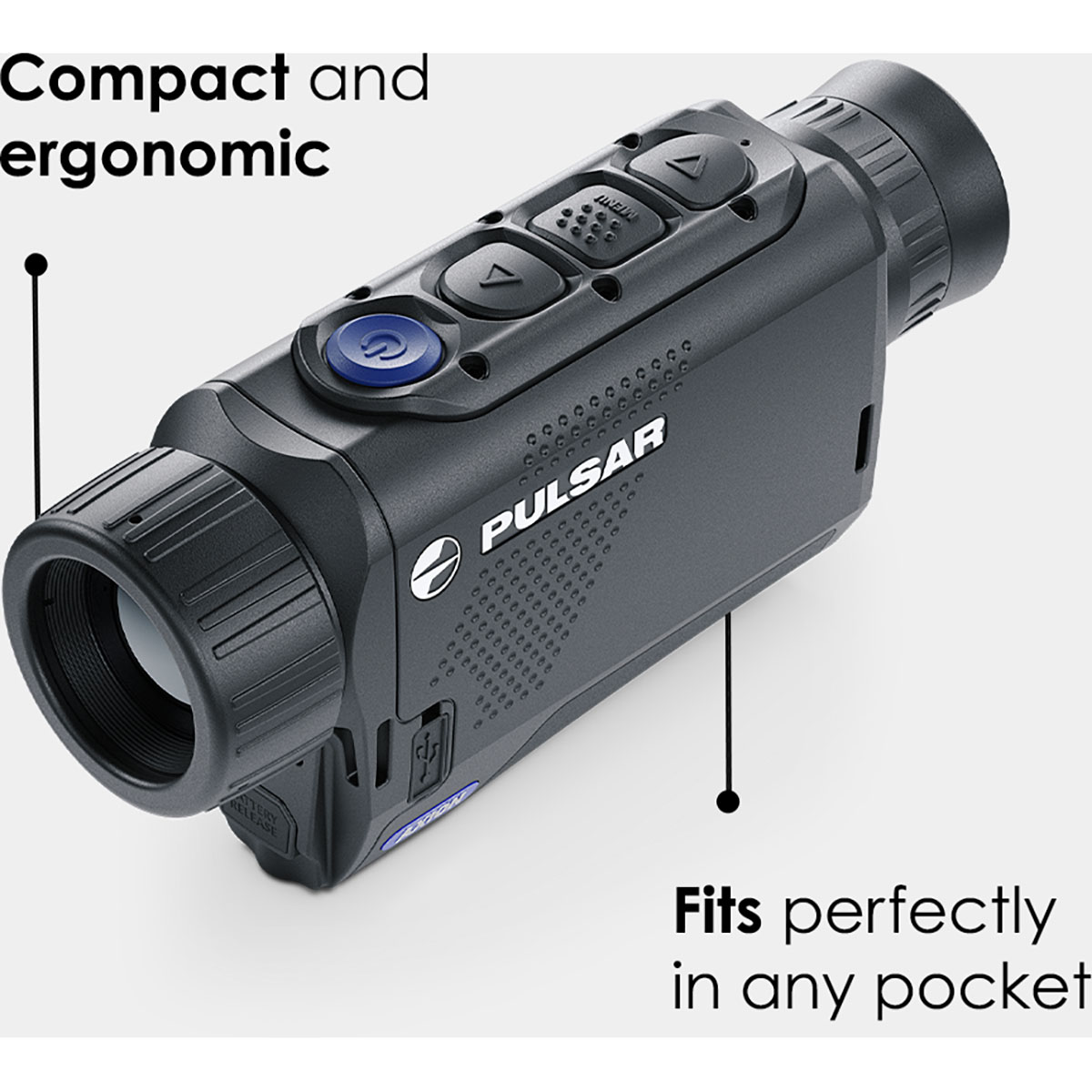

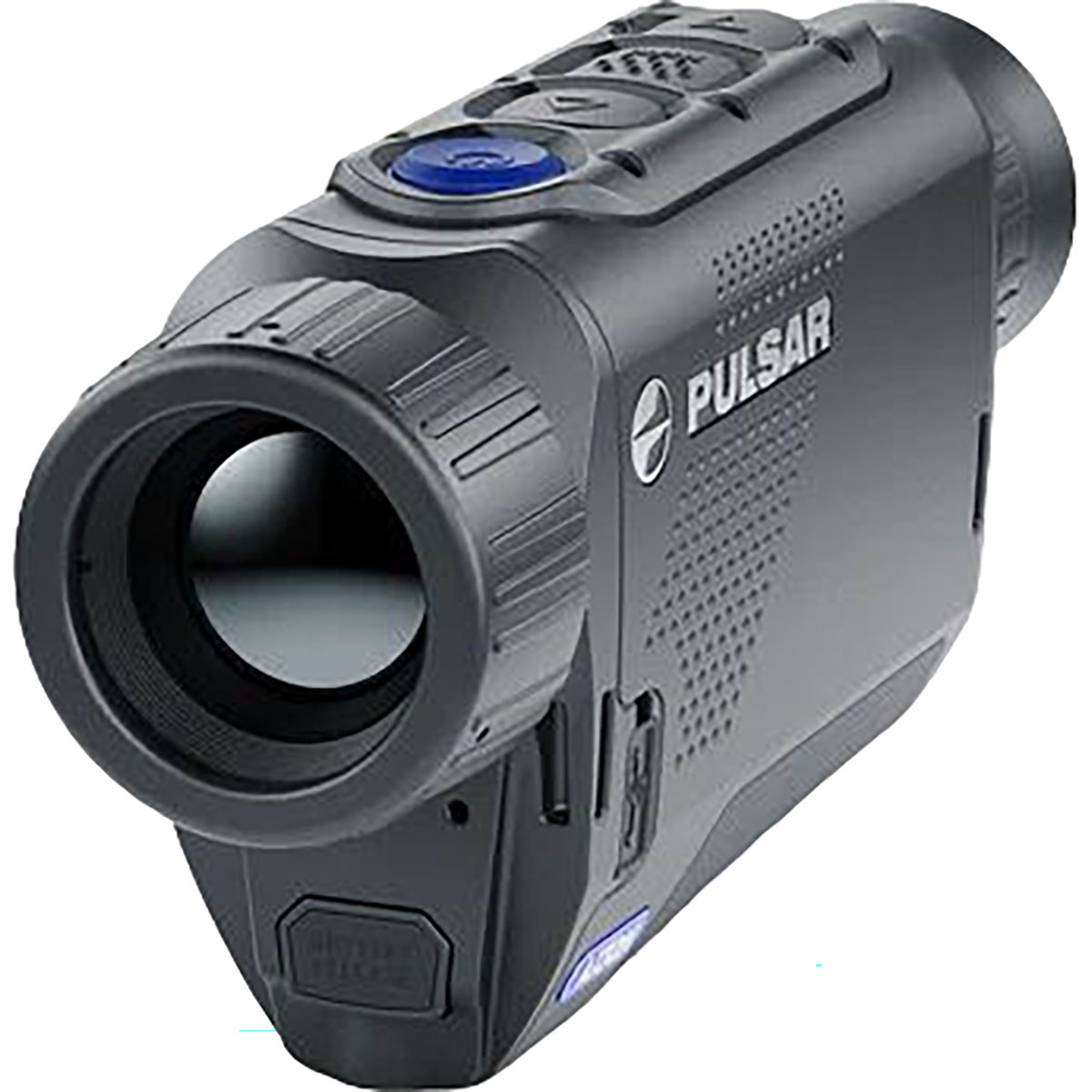

Compact thermal imaging scope for hunting and outdoor applications. Axion XQ30 Pro offers full set of features including Digital Zoom, Picture in Picture mode, Stadiametric rangefinder, 8 color palettes, photo and video capture, WiFi connection to smartphones or tablets with the help of Stream Vision 2 app. Professional-grade thermal imaging sensor with 384x288 pixels resolution and less the 25 mK thermal sensitivity, power-efficient AMOLED screen provide excellent image even in the most unfavorable conditions. Ideally fitted for hand Axion’s magnesium housing is rugged and fully waterproof.
MAIN SPECS

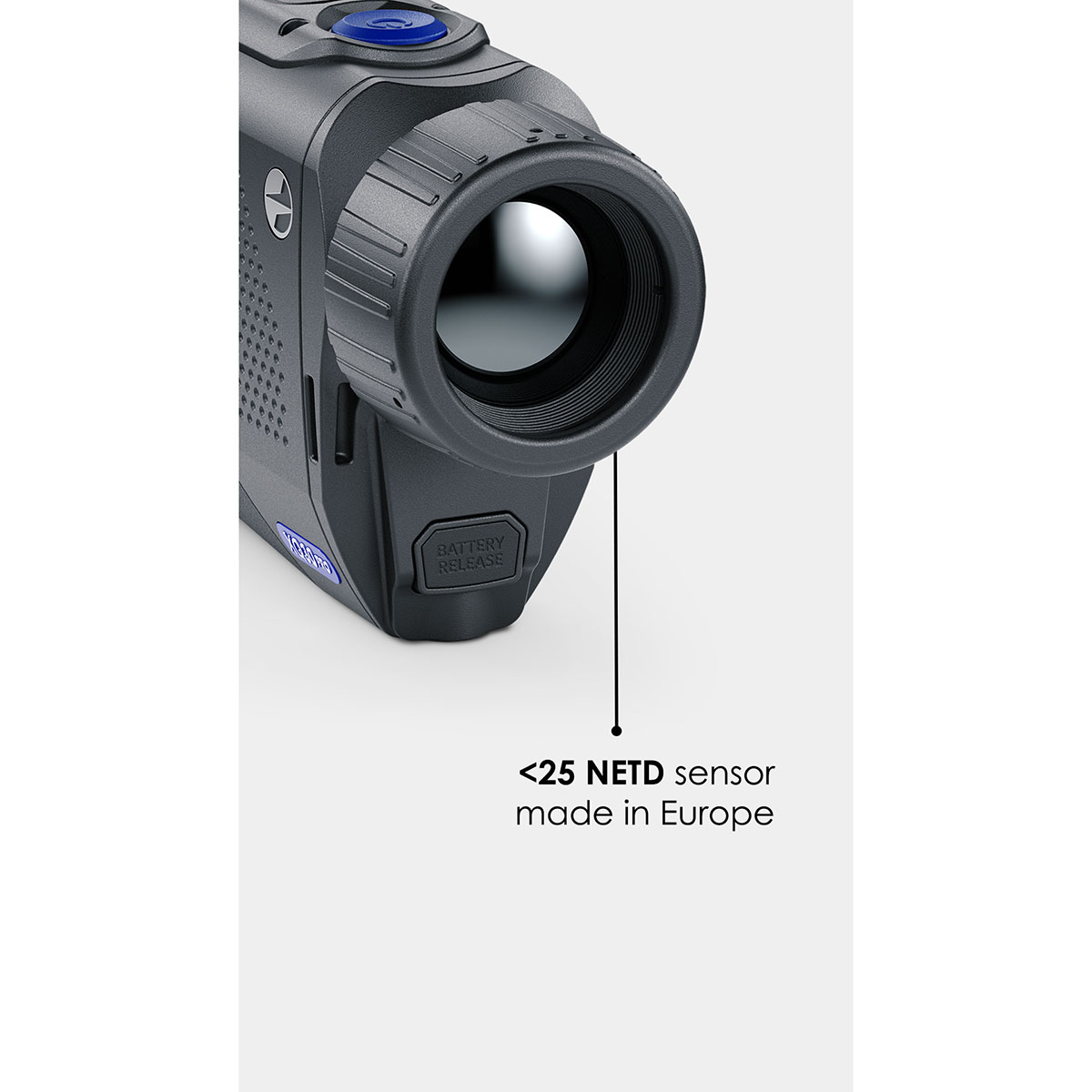

- Sensor: 384x288 pix. @ 17 µm (NETD <25 mk>
- Objective lens: F30/1.2
- Magnification: 2 – 8X (x4 zoom)
- Field of view (HxV), degrees: 13.3x10 / 23.3Ñ…17.5
- Detection range: 850m / 930y
SENSOR
- Type: Uncooled
- Resolution, pixels: 384x288
- Pixel pitch, µm: 17
- NETD, Mk: <25>
- Frame rate, Hz: 50
OPTICS
- Objective lens: F30/1.2
- Magnification: 2-8X
- Field of view (HxV), degrees: 13.3
- Eye relief, mm: N/A
DISPLAY
- Type: AMOLED
- Resolution, pixels
- 640x400
- Range Performance
- Detection range: 1050m / 1150y
VIDEO RECORDER
- Video / photo resolution, pixel: 528Ñ…400
- Video / photo format: .mp4 / .jpg
- Built-in memory, GB: 16
Wi-Fi
- Wireless Protocol: Wi-Fi
- Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
- Frequency, GHz: 2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protection, IP code (IEC60529): IPÐ¥7(waterproof)
Operating temperature range, °С: -25 – +40
CONNECTIONS AND COMPATIBILITIES
- Mount, type: 1/4""
- Supported Application: Vision 2
POWER SUPPLY
- Output voltage, V: 3.0 – 4.2

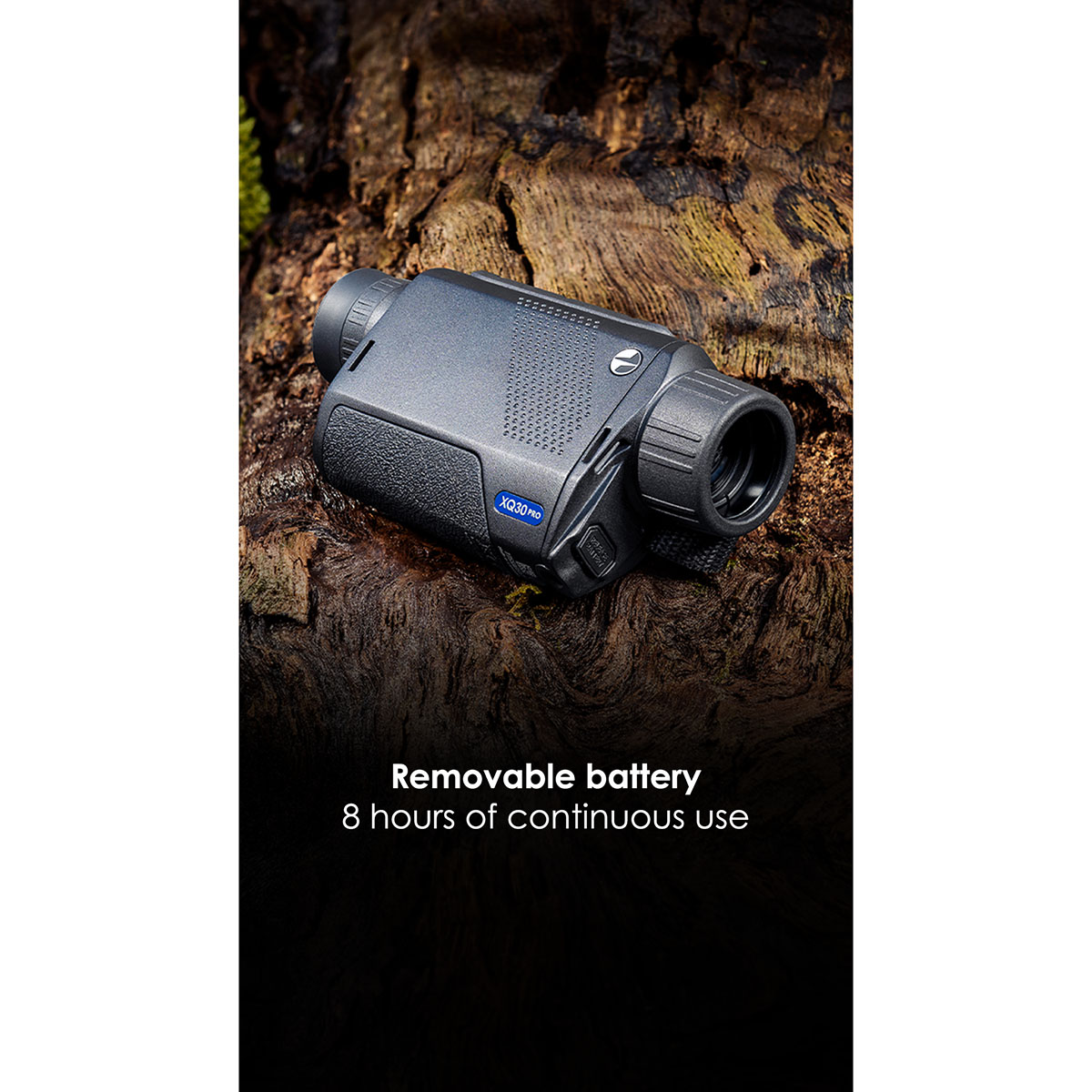

- Battery type: Dual Li-Ion power system: APS 3 changeable battery (3.2 A·h)
- Capacity, mAh: 3200
- Operating time on battery pack (at t=22°C), h *: 8
- External power supply, V: 5V (USB)
WEIGHT AND SIZE
- Body material: Magnesium alloy
- Dimensions, mm: 144x41x69
- Weight, kg: 0.3 (with battery)
Available options:
430111992
Max Magnification:
8
Battery Life (Minimum):
Color:
Black
Battery Life (Maximum):
8
Min Magnification:
2
Item Height (Inches):
3.000
Frame Rate:
50
Battery Type:
APS 3
Objective Size:
Item Width (Inches):
5.250
Item Length (Inches):
11.750
Item Weight (lbs):
2.100
Thermal Range; Identification:
Optic Resolution:
384x288
Material:
Aluminum
Quantity:
1
Model Number:
AXION XQ30 PRO
Thermal Range; Detection:
930
Thermal Range; Recognition:
Oversea shipping:
No
Prop 65 restriction:
Warnining: This product can expose you to chemicals including Butadiene which is known to the State of California to cause cancer. For more information, go to www.P65Warning.ca.gov/furniture.
Shop All ED BROWN
Axion XQ30 Pro 2-8X Mag 17-Micron 384x288 Res 50Hz
MAP:
1699.970000000
Your Price
$2,299.99 *
Crow # 430111992
MFR # PL77506
UPC 840284901514
Iowa Warehouse
