BRAVO COMPANY BCM® STANDARD 5.56 NATO MID-LENGTH ENHANCED LIGHT WEIGHT COMPLETE UPPER RECEIVER W/MOD 3 COMP FOR AR-15

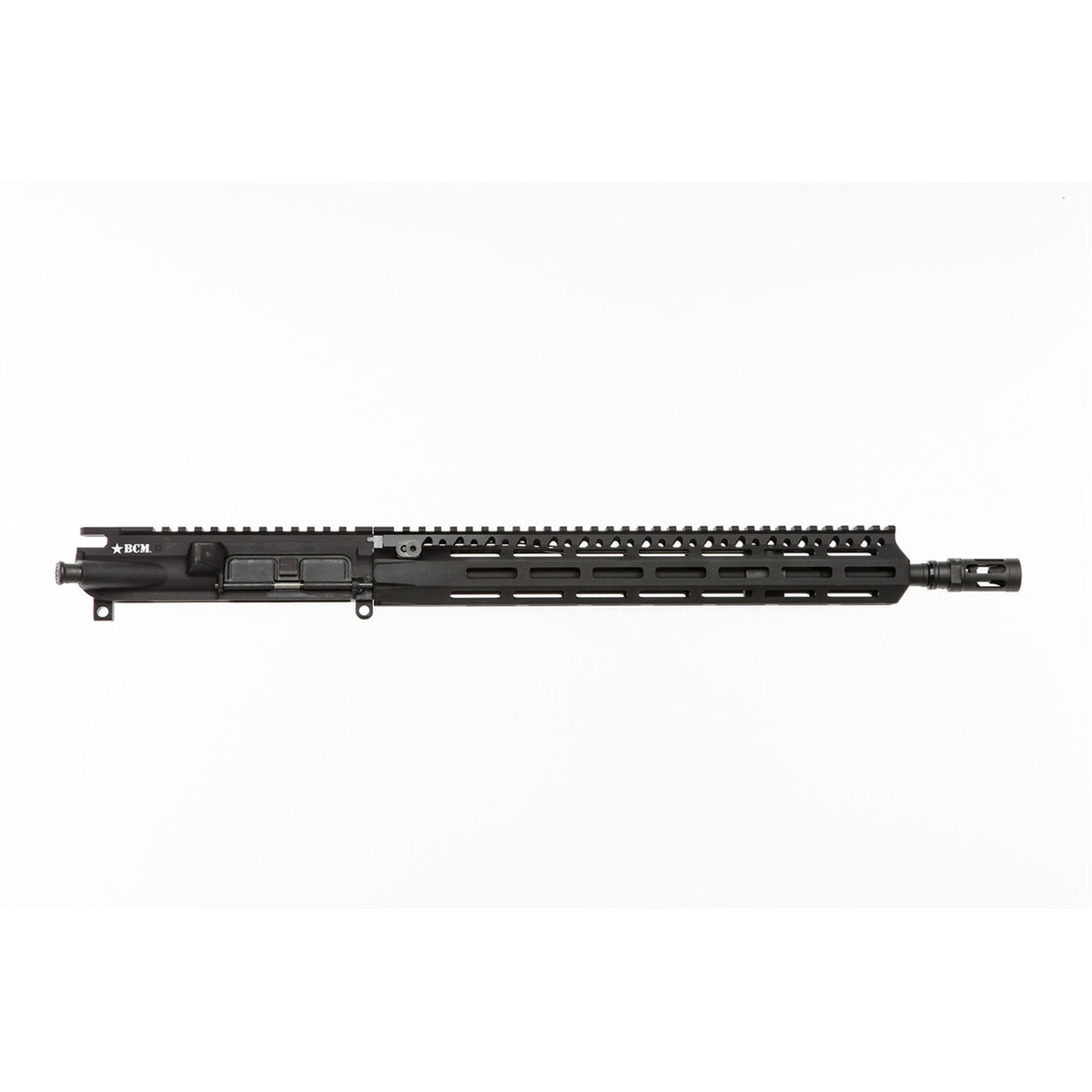

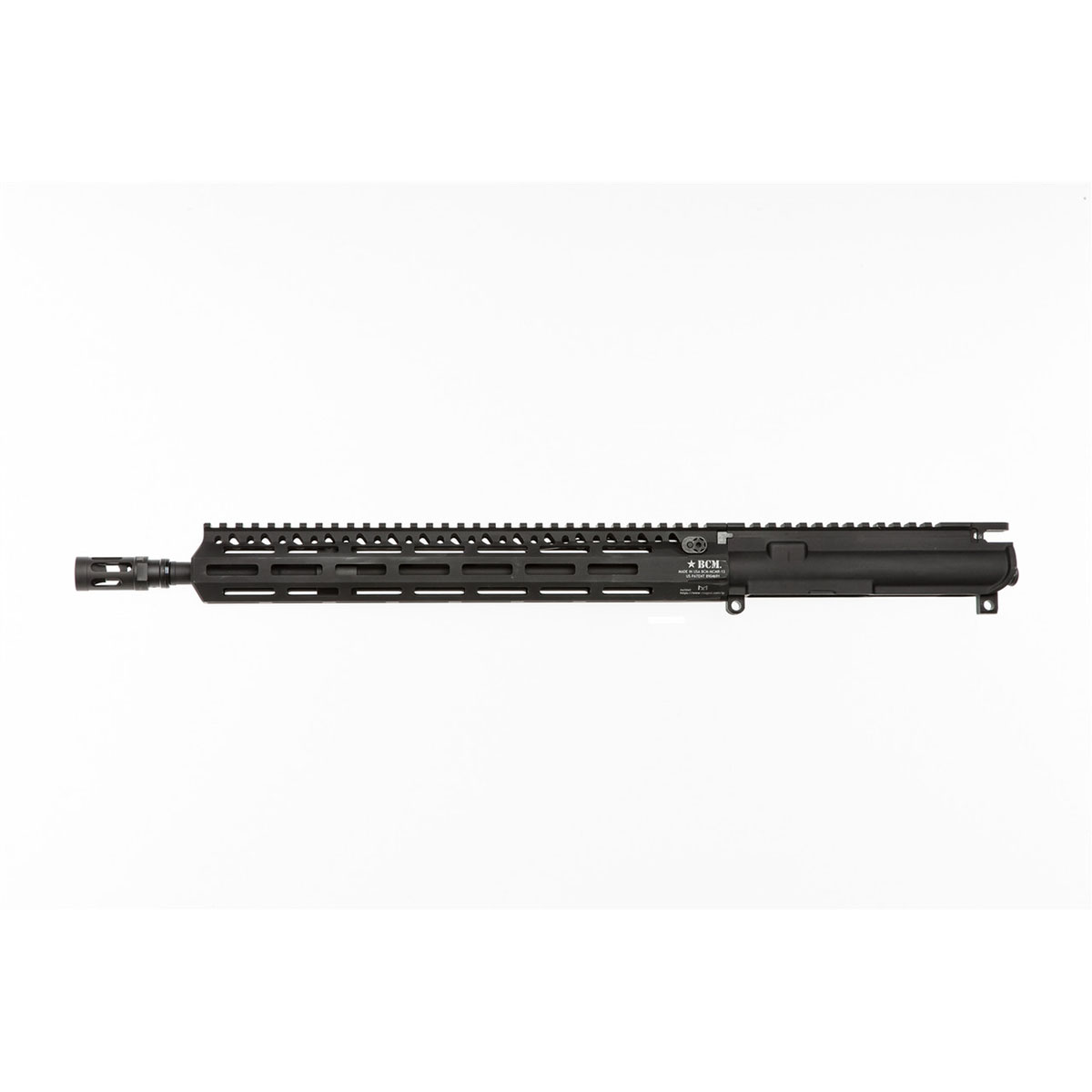

About the BCM® Standard 14.5” Mid Length ELW Complete Upper Receiver w/ MCMR-13 Handguard

This BCM® Upper Receiver Group with a MCMR Handguard Includes

• One 3” Picatinny Rail Section
• One BCM MCMR Sling Mount
• BCM® Comp Mod 3 (Permanent Install)

Manufactured by Bravo Company MFG, Inc. (BCM)

These Barreled Upper Receiver Groups are designed for shooting professionals and responsible civilians with the Mil-Spec features for the demands of their duty. They are fully assembled, headspaced, and test fired.

As a note: BCM barrel components are parkerized separately before assembly. Prior to shipping, all BCM upper receiver groups are test fired for function, laser bore sighted with a Milspec carry handle for sight alignment within Mil-Specs, and then batch samples are test fired for accuracy. As such, the upper receiver group will show handling marks consistent with these quality control procedures.

M4 Feed Ramp Barrel Extension and Upper Receiver

One of the modifications done to increase reliable feeding included enhancing the angle and the length of the feed ramps. This USGI modification was done to both the barrel extension and the upper receiver, creating a longer and steeper feed ramp. These Mil-Spec M4 feed ramps are part of the original CNC manufacturing process. As a result, the factory machined M4 feed ramps on the receiver are hard coat anodized which adds significant strength to the aluminum. This feature is offered on all BCM upper receivers and all BCM barrels.

T-Marked Upper Receiver

The contemporary M16/M4 rifle is built around the concept of modularity. All of the BCM flat top uppers feature a USGI type laser etched T-marks to provide addressing for the remounting of tactical accessories such as optics, laser sights, etc.

USGI 1/7 Twist Rate

The USGI 1/7 twist rate of all of the BCM barrels is the preferred twist rate by most professional infantryman.

Mil-Spec Barrel Steel (Certified Mil-B-11595E)

BCM barrel steel is Mil-Spec per MIL-B-11595E, and is independently certified. This grade (CMV) of steel is a Mil-Spec steel used in the USGI M16 family of rifles; it is stronger and will last longer than the typical barrels offered in the commercial market. This Mil-Spec grade steel gets its' additional strength and rigidity from an increase in carbon and/or vanadium in the alloy.

Chrome Bore and Chamber

One of the first modifications that were made to the original M16 in the mid 1960's was the addition of the chrome lined bore and chamber. It is now a worldwide standard in the industry for a battle rifle. The chrome bore and chamber is harder than the barrel steel and will aid in chambering, extraction, and reliability. It increases velocity, and also resist against fouling and corrosion from extended use in the field.

Manganese Phosphate Barrel Finish

Barrels are parkerized with the manganese phosphate finish per Mil-Spec. Military specifications also state that the entire barrel surface is phosphate finished to create a porous surface to absorb oil as to resist against corrosion from the elements. BCM barrels are phosphated before installation of front sights. This is a much more extensive assembly operation, but insures that the entire barrel is finished and protected . . .even under the front sight base.

5.56 NATO Chambers

The USGI 5.56 NATO chamber is the best choice for effective deployment, reliability, and compatibility, of higher chamber pressures of military or high quality personal defense ammunition.

HPT / MP Inspected Barrels

Military specifications require that barrels undergo a HPT (High-Pressure Test) load as a part of quality assurance procedures. Commonly referred to as a proof load, the M197 HPT is rated for 70,000 psi. BCM barrels are proof loaded and then MPI (Magnetic Particle Inspected) to detect any possible flaws in the barrels surface. The barrels are MP inspected with both circular and longitudinal magnetic fields per ASTME1444-01 (current Mil-Spec) to assure a high quality finished product.
