R2S FLASH HIDERS
These fit Plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned.
Torque the muzzle device to approximately 15-25 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly.
FEATURES:
- 17-4 PH
- Atlas and Atlas XL compatible
- Plan B compatible
- Black Nitride finish (67 HRC Surface hardness)
- Shims not included, if you would like to specifically time this, shims will be required.
- Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.
Available options:
430111395
,
430111396
,
430111398
,
430111399
,
430111400
,
430111401
,
430111402
,
430111403
Color:
Black
Caliber:
40 Caliber
Model Number:
Square Shoulder
Item Weight (lbs):
0.100
Diameter (in):
Material:
Stainless Steel
Finish:
Black Nitride
Quantity:
1
Item Length (Inches):
1.740
Muzzle Threads:
5/8"x24
Restricted Part:
Yes
Shop All ED BROWN

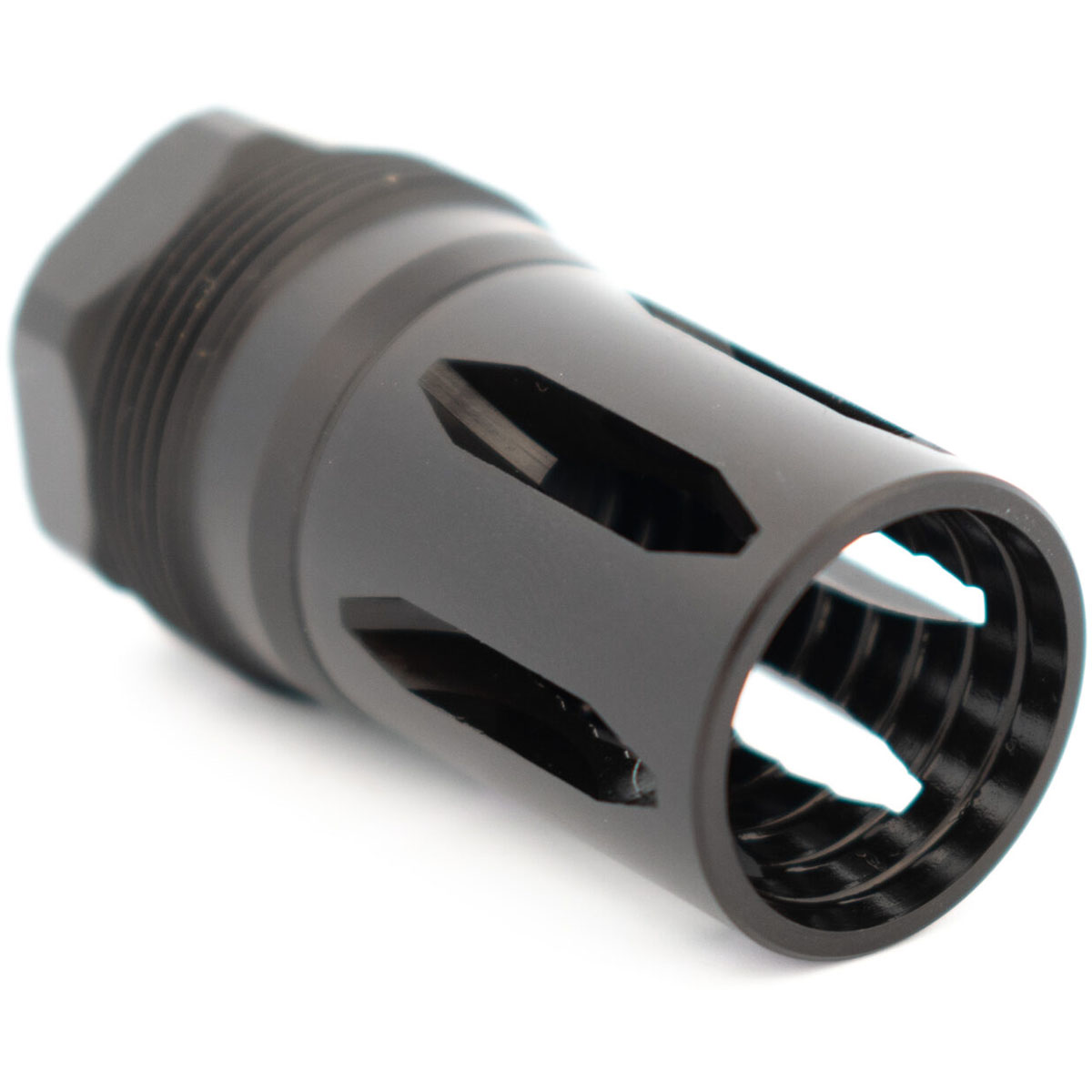

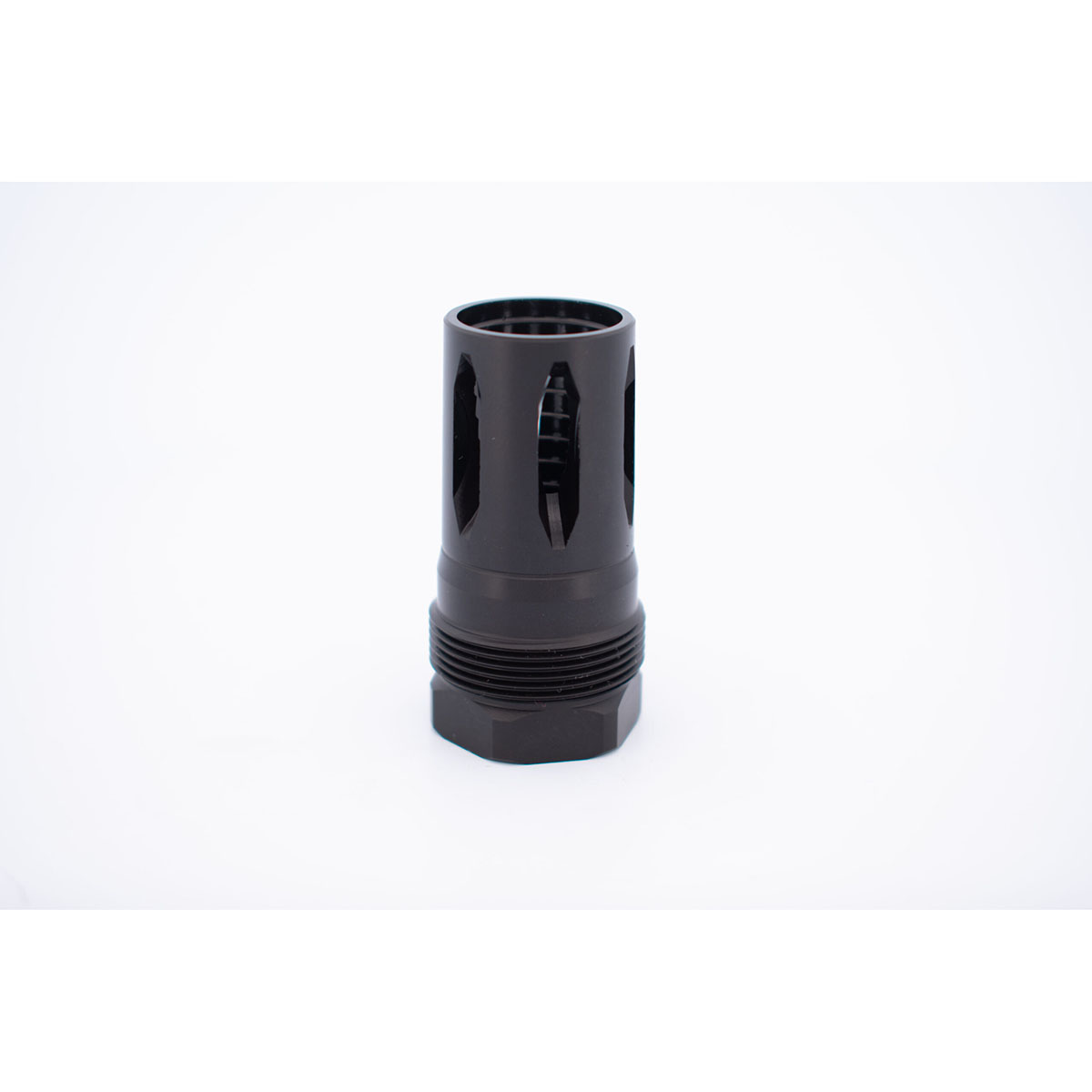

R2S Flash Hider 5/8-24 Threads Square Shoulder Black
MAP:
72.000000000
Your Price
$2,299.99 *
Crow # 430111396
MFR # 10103
UPC 850035804919
Iowa Warehouse
North Carolina Warehouse
