MINI MUZZLE BRAKES
Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned.
Torque the muzzle device to approximately 15-25 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy.
FEATURES:
- 17-4 PH H900
- Atlas and Atlas XL Compatible
- Plan B Compatible
- Atlas Adapter Overrun Approximately 0.050″
- Atlas XL Adapter No Overrun
- Black Nitride Finish (67 HRC Surface Hardness)
- Shims Not Included
Available options:
430111378
,
430111379
,
430111380
,
430111381
,
430111382
,
430111383
,
430111386
,
430111387
Quantity:
1
Finish:
Black Nitride
Cartridge:
Caliber:
577 Caliber
Color:
Black
Caliber (Maximum):
Item Length (Inches):
0.968
Caliber (Minimum):
Item Weight (lbs):
0.052
Diameter (in):
Material:
Stainless Steel
Model Number:
Square Shoulder
Muzzle Threads:
11/16"x24
Restricted Part:
Yes
Shop All ED BROWN

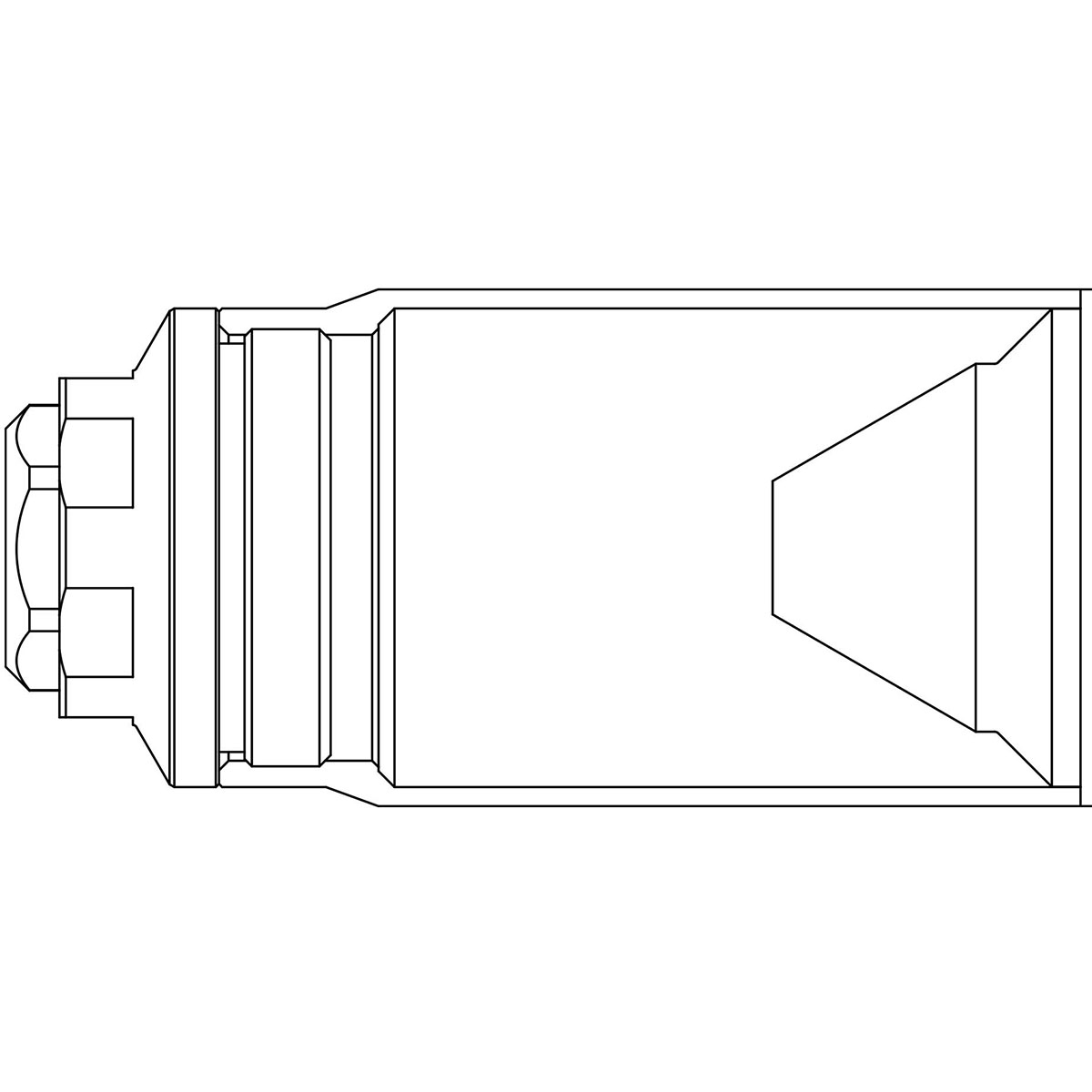

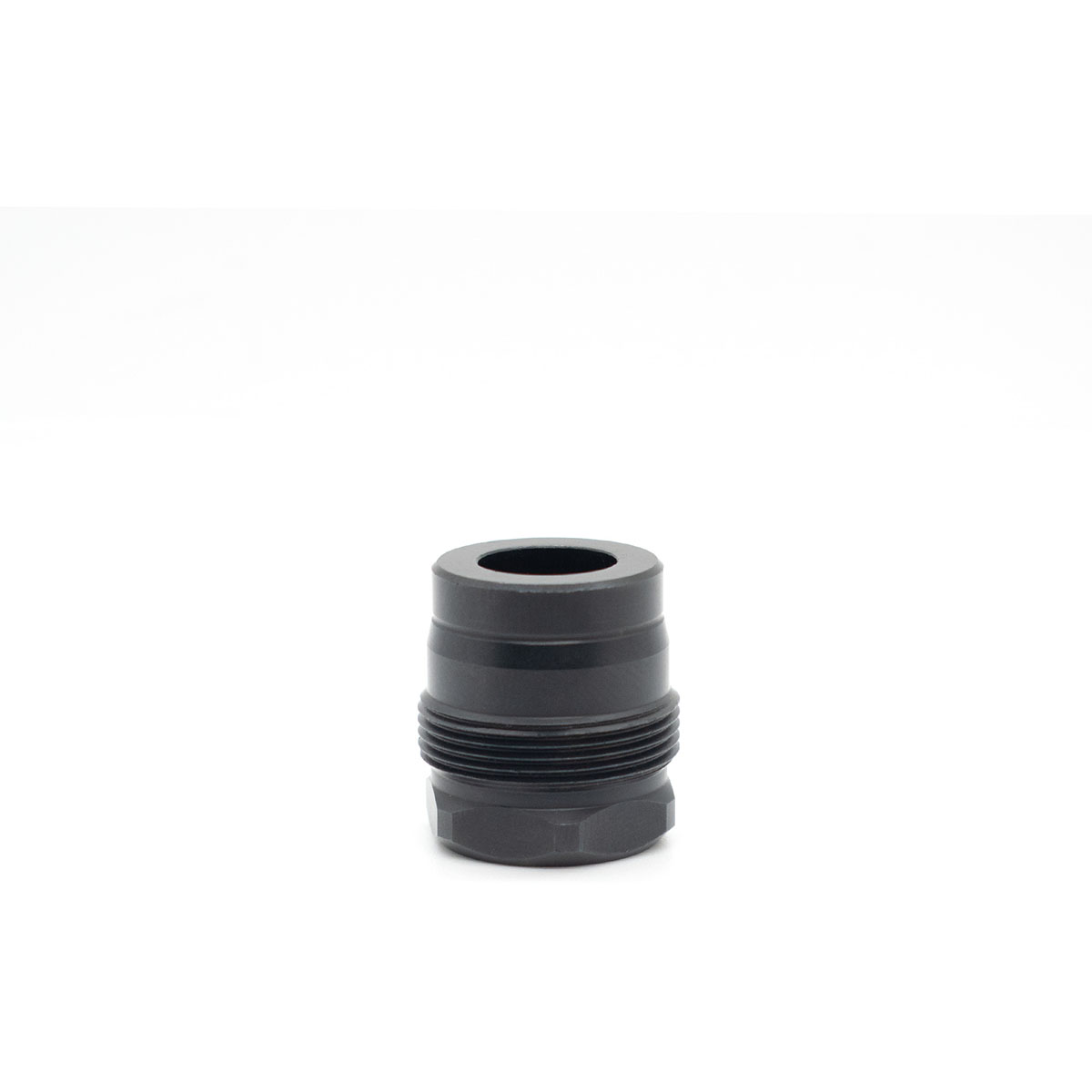

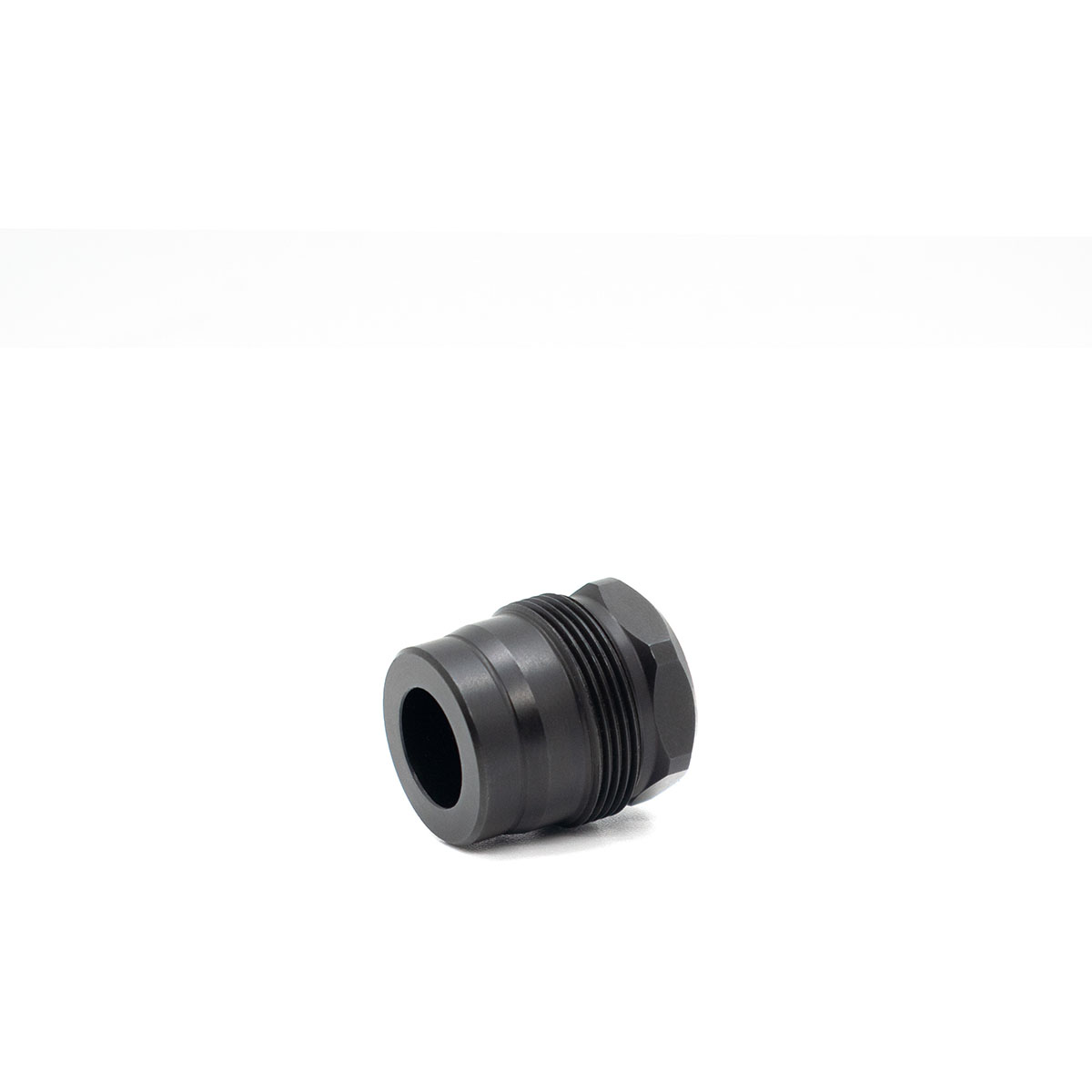

Mini Muzzle Brake 0.571 11/16-24 Thread Square Shoulder Blk
MAP:
53.100000000
Your Price
$2,299.99 *
Crow # 430111383
MFR # 10144
UPC 850041491448
