ARCALOCK MLOK ATTACHMENT
Area 419 is always looking for ways to improve existing products when Area 419 are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, they saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure.
Area 419 is always looking for ways to improve existing products when Area 419 are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, they saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure.
Introducing the ARCALOCK Dovetail Rail System *Rail is only locking with an Area 419 clamp*
Rail Features:

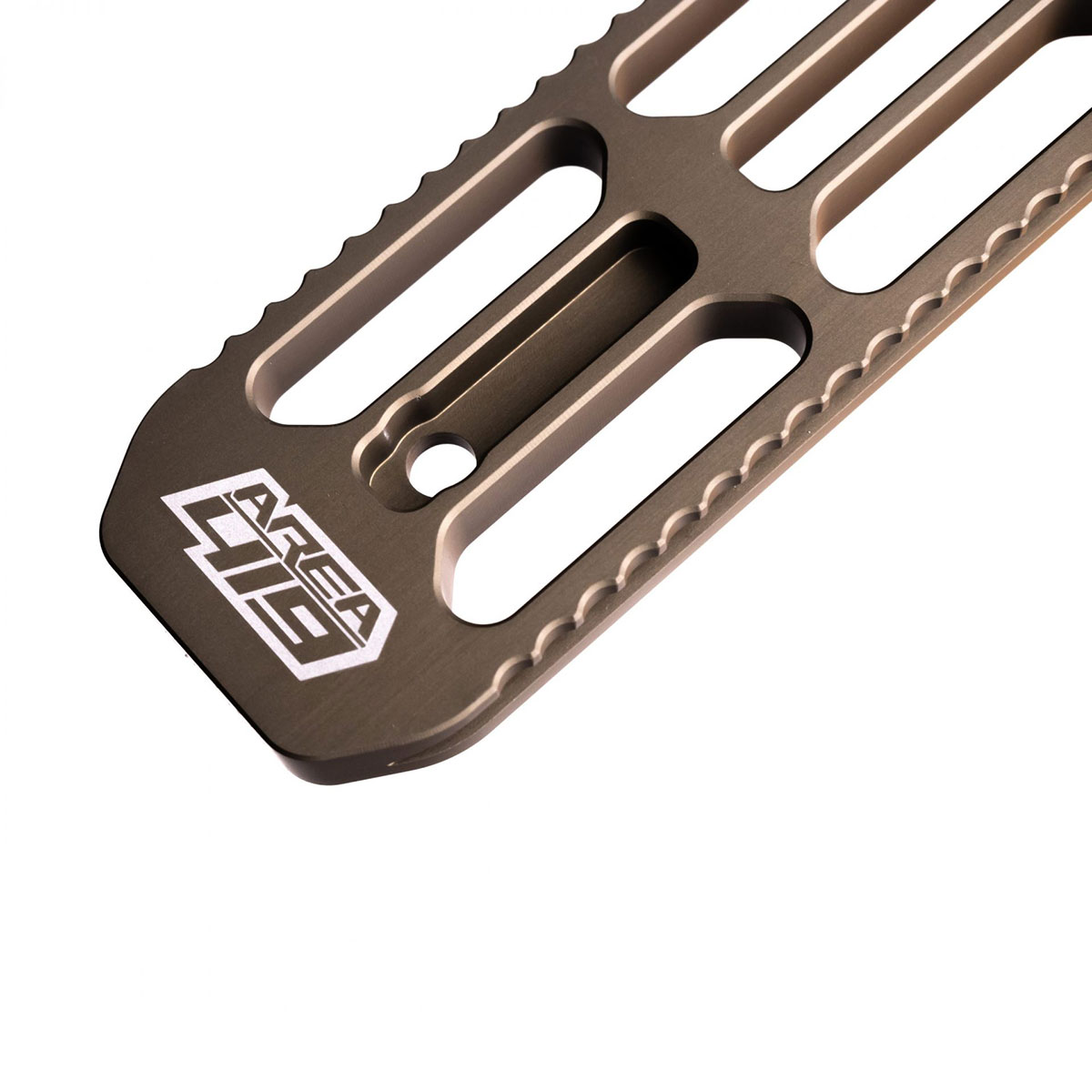

Serrated rail sides interface with Area 419’s proprietary clamp design to mechanically lock it in place so no movement is possible. Serrations are not sharp, will not damage bags or your hands.
Rail is backwards compatible with standard Arca accessories, but will not be locking without Area 419’s clamp.

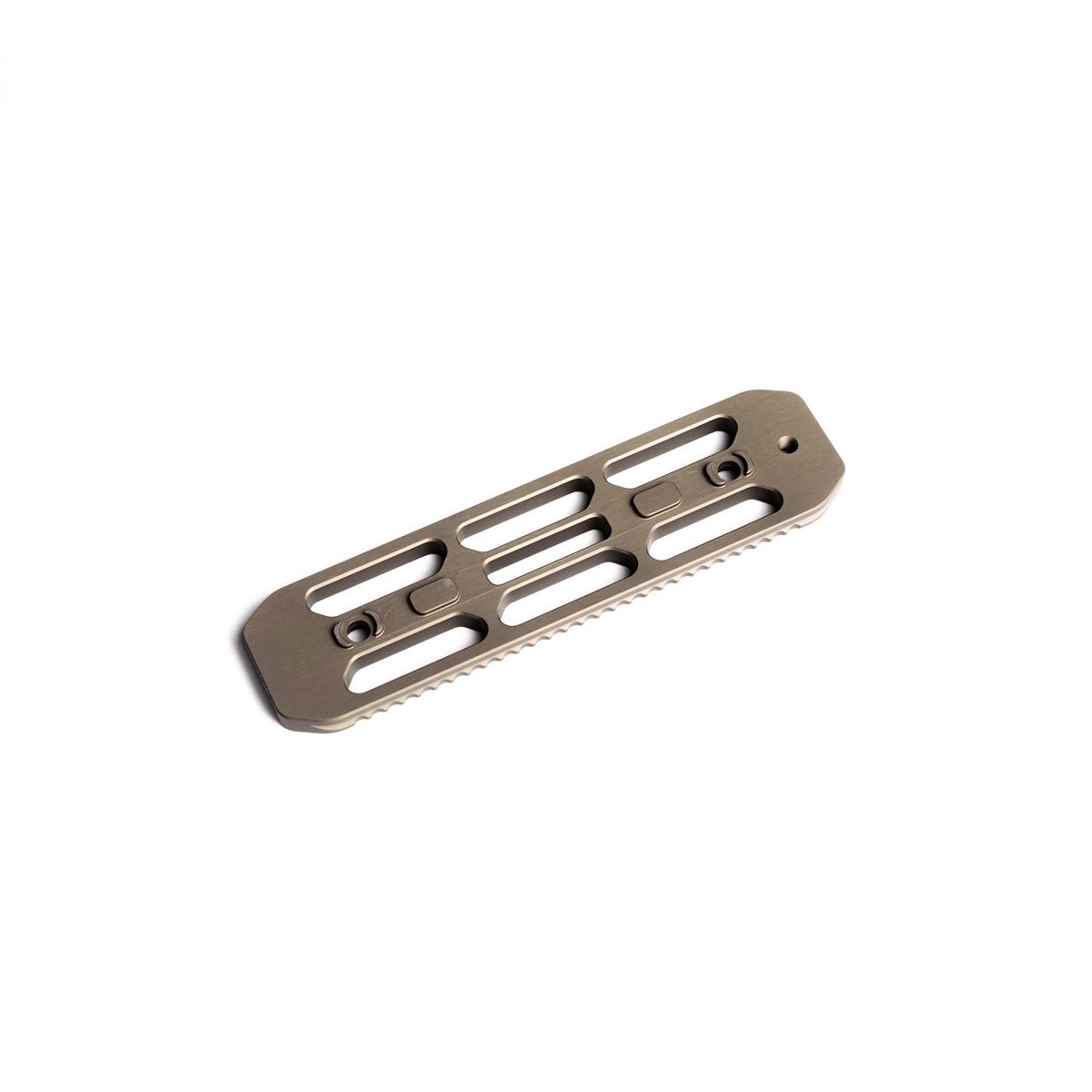

Arcalock Dovetail Rail 6" M-LOK is 6″ long and weighs in at a paltry 2.2oz.
NOTE: THIS RAIL REQUIRES 3 CONSECUTIVE MLOK SLOTS TO ATTACH.Arcalock Dovetail Rail 6" M-LOK is 6″ long and weighs in at a paltry 2.2oz.

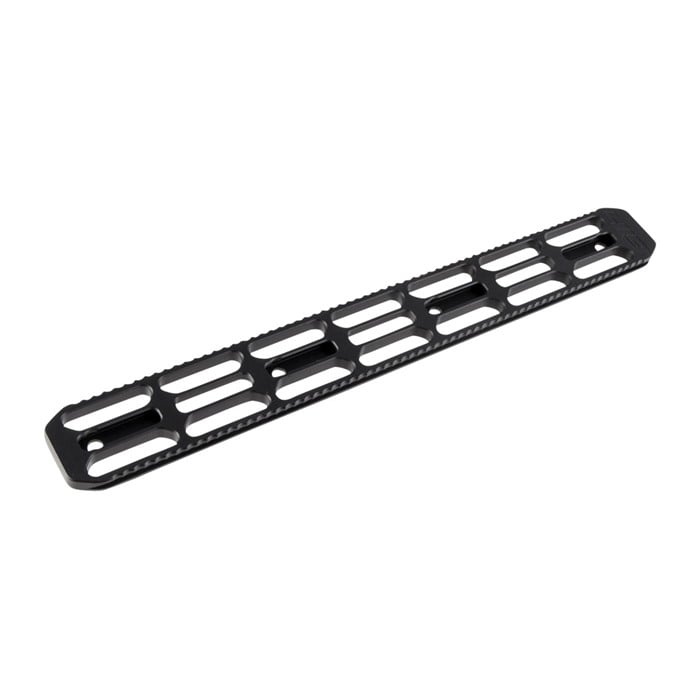

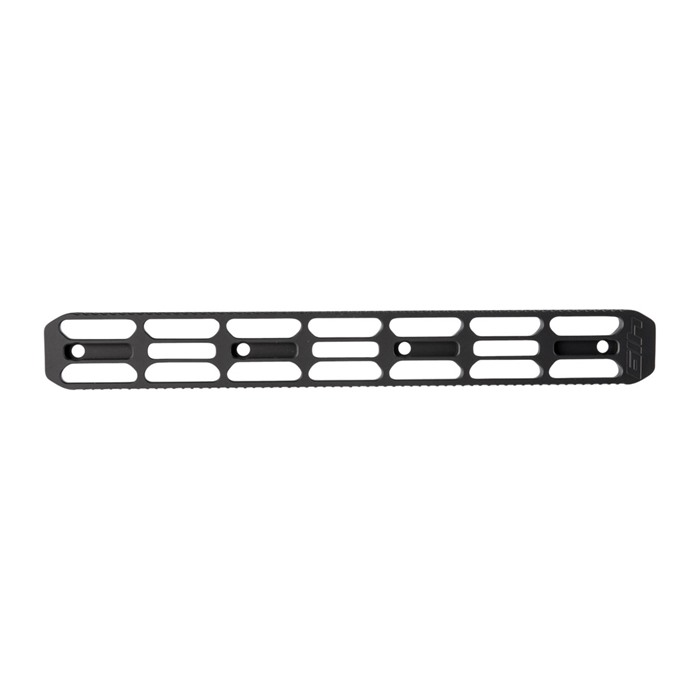

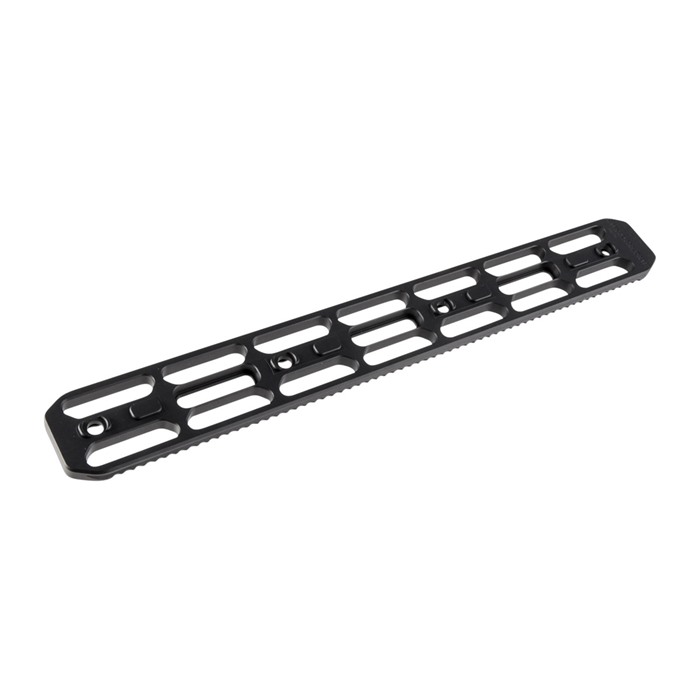

Arcalock Dovetail Rail 12” M-LOK is 12″ long giving you the entire length of the stock forend for attachments. The best part is, it still only weighs in at a paltry 4.1oz.
NOTE: THIS RAIL REQUIRES 6 CONSECUTIVE MLOK SLOTS TO ATTACH. FOR STOCKS WITH FEWER MLOK SLOTS, YOU’LL WANT A 12″ UNIVERSAL RAIL WITH MLOK ATTACHMENT NUTS
SPECS
- Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work.
- No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. This takes longer to make, but it is the only right way.
- Type 3 Hard Coat anodized for additional durability.
- Made from 6061-T6 Aluminum.
- Made in-house in the USA from USA sourced Aluminum on USA made CNCs.
- Rail comes with all M-LOK mounting hardware.
